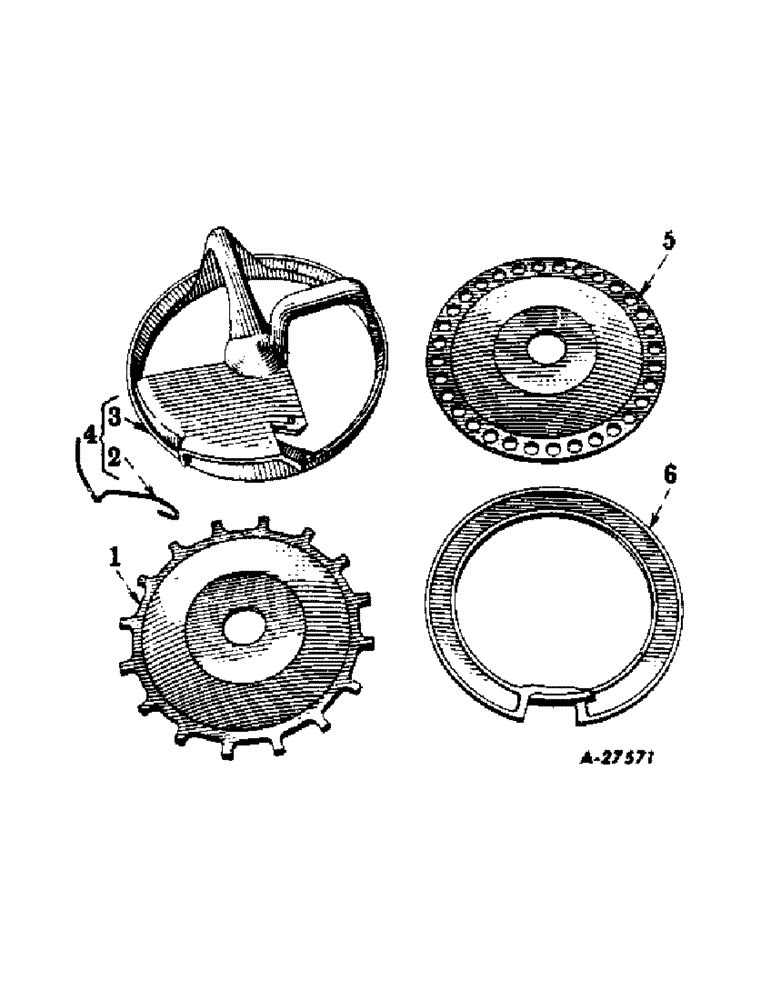

Запчасти Case IH 251 (X-14) - PEANUT PLANTING EQUIPMENT, 1966, ONE PER ROW

621738R92

PEANUT PLANTING EQUIPMENT, consists of parts listed below

1шт.

1

621731R2

PLATE, seed, 16 cells, for peanuts in shell

2шт.

2

621734R2

SPRING, knocker and cut-off

2шт.

114380

NUT

1/4-20NC sq

2шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

1/2-20NC x 5/8 slotted-rd-hd mach

2шт.

Q391

WASHER

9/32 x ID x 5/8 OD x 18 ga plain

4шт.

3

BOTTOM, hopper, order 622187R91, ref. no. 4

1шт.

4

622187R92

BOTTOM W/CUT-OFF SPRING, hopper

2шт.

5

621732R2

PLATE, seed, 32 cells, for shelled peanuts

2шт.

6

621733R2

RING, filler, used w/621732R2, seed plate

2шт.
