Запчасти Case IH 251 (X-13) - COMBINATION HOPPER, STRAIGHT SIDE

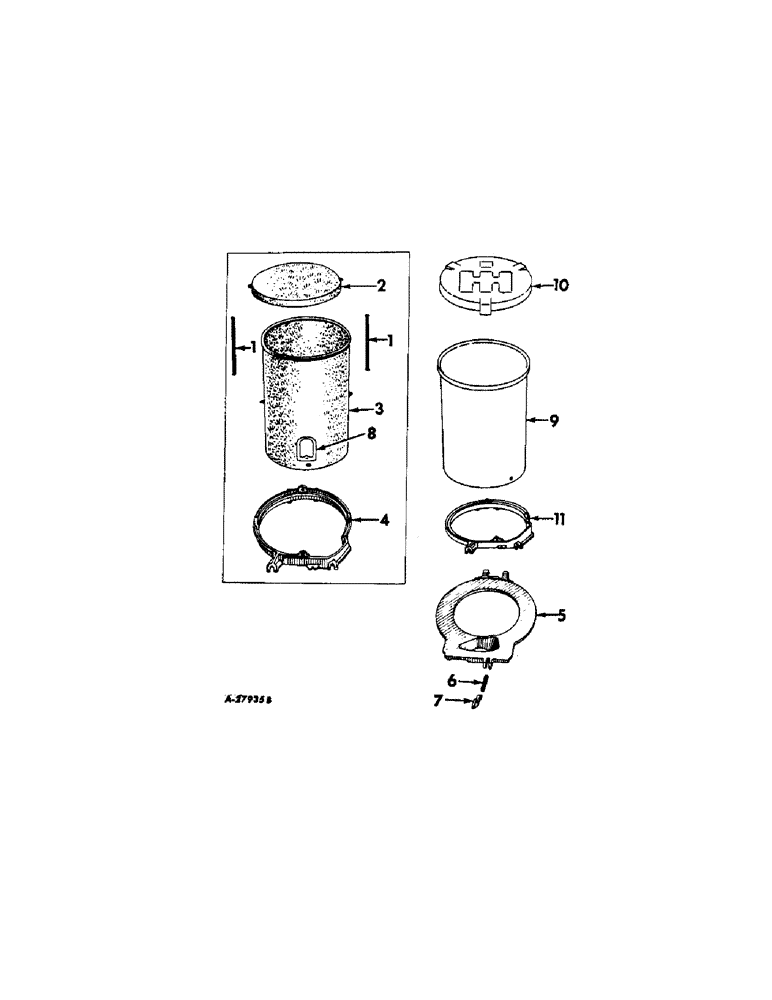

Схема запчастей Case IH 251 - (X-13) - COMBINATION HOPPER, STRAIGHT SIDE
8
4
9
10
2
5
1
3
6
11
1
7

Артикул

Название

Примечание

Количество

1

622125R1

SPRING

lid, for hopper lid 622133R91

1шт.

2

622133R91

LID, hopper, for lid spring

1шт.

2

626451R1

LID, hopper, Serial Range: 1958-1964

1шт.

3

622132R93

HOPPER, for lid spring

1шт.

3

626468R91

HOPPER, Serial Range: 1958-1964

1шт.

4

621703R3

RING, hopper bottom

1шт.

138198

ARM

SCREW, 5/16 x 3/8 C-Z slt-rd-hd mach

4шт.

5

488815R1

PLATE, hopper bottom

1шт.

5

488816R1

RING

PLATE, wear ring, used w/hopper bottom

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

M95023

PIN, 5/16 x 3-5/8 dld-std-hd

1шт.

6

606245R1

SPRING

latch, 1962 and since

1шт.

6

526

SPRING, latch, 1961 and prior

1шт.

7

621710R1

LATCH

hopper bottom plate

1шт.

PIN, 3/16 x 1 cotter

1шт.

8

624463R1

WINDOW

seed vision, for hopper, 626468R91

1шт.

9

478558R11

HOPPER

ASSY, fiberglass small seed, 1964 and since

1шт.

10

474850R2

COVER ASSY

COVER, polyethylene small seed hopper, 1964 and since

1шт.

11

478563R1

RING

combination hopper bottom, for fiberglass hopper, 1964 and since

1шт.

SCREW, 5/16 x 3/8 C-Z slt-rd-hd mach

1шт.

Выбрано товаров: 20
