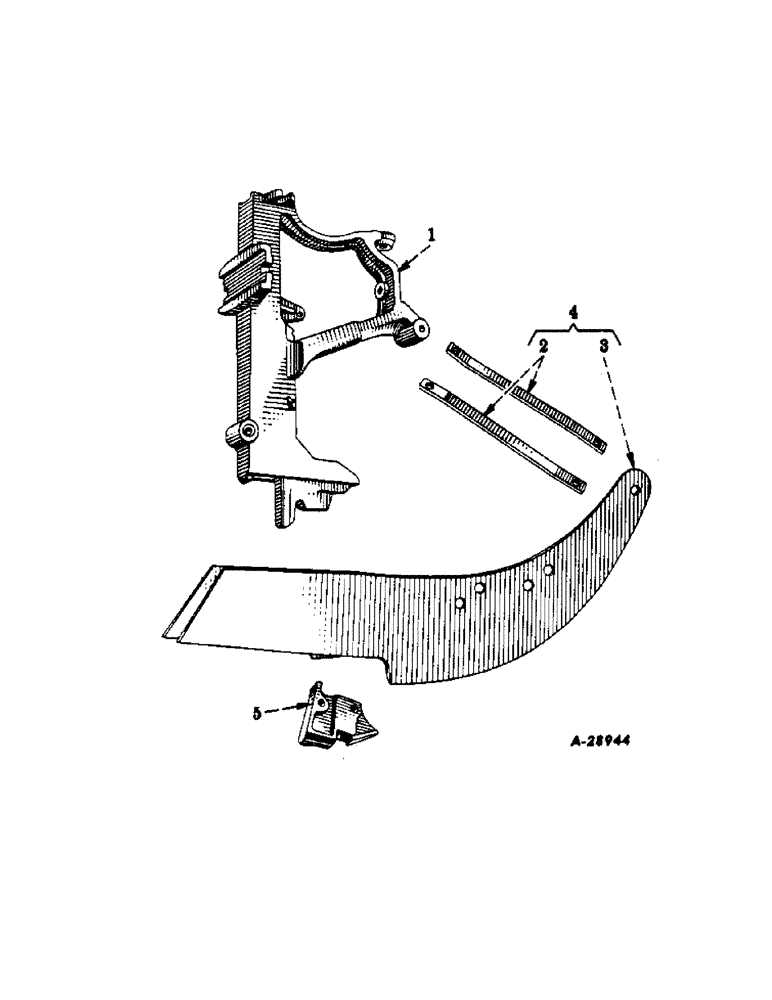

Запчасти Case IH 251 (X-12) - REGULAR RUNNER OPENER AND BOOT

1

623654R1

BOOT

2шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

3/8-16NC x 2 crg

4шт.

15124R1

BOLT (SPREADER)

BOLT, 3/8-16NC x 2-3/4 crg

2шт.

280136

NUT,3/8"-16, G8

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

622299R1

SUPPORT

BRACE, runner

4шт.

17573R11

BOLT

W/NUT, 5/16-18NC x 2-1/2 hex-hd mach

2шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 rd-hd

2шт.

3

621657R93

RUNNER

W/BUSHING

2шт.

4

622337R92

RUNNER

W/BUSHING AND BRACES

2шт.

5

621660R1

BUSHING, runner

2шт.

13558R1

BOLT, 3/8-16NC x 5 mach

2шт.

280136

NUT,3/8"-16, G8

2шт.

14035R1

RIVET, 5/16 x 1-1/2 csk-hd

2шт.

14057R1

RIVET, 5/16 x 1-3/4 csk-hd

2шт.
