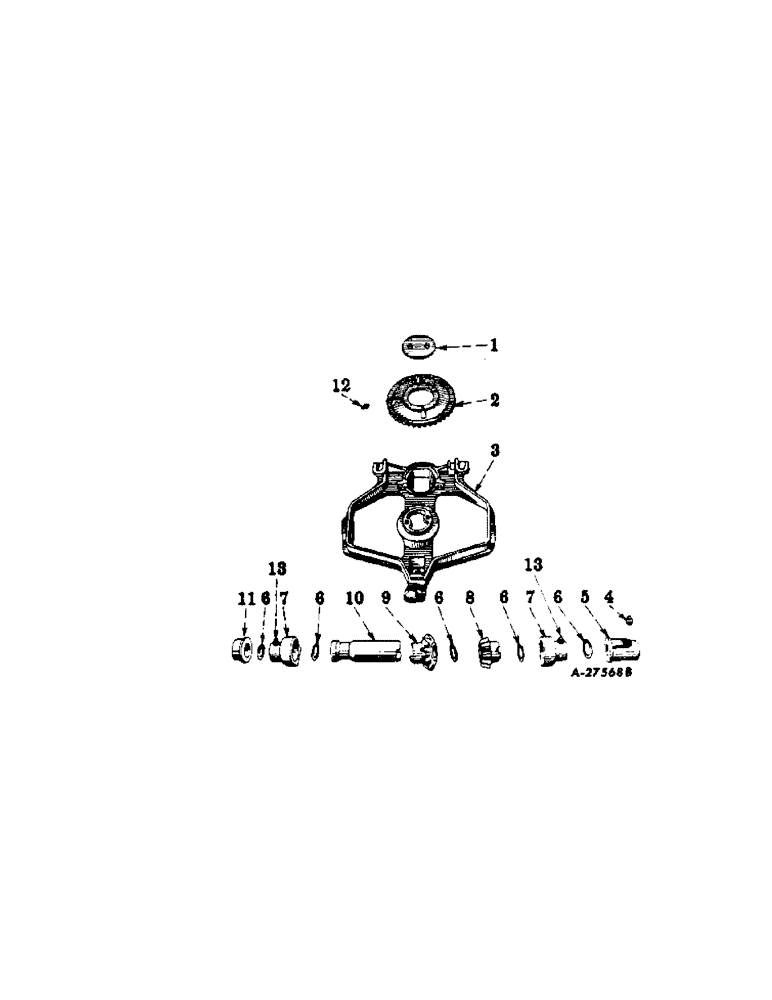

Запчасти Case IH 251 (X-12[A]) - HOPPER BRACKET AND DRIVE

1

462502R1

RETAINER

gear, 1961 and since

2шт.

1

621709R1

RETAINER, gear, Serial Range: 1955-1961

2шт.

NLS

NO LONGER SERVICED

1/4-20NC x 5/8 slotted-fl-hd

4шт.

114616

WASHER

1/4 countersunk external tooth lock

4шт.

2

622120R21

GEAR

W/LUBRICATION FITTING, double, 20 and 40 teeth

2шт.

3

466383R1

BRACKET, hopper, 1961 and since

2шт.

3

622768R1

BRACKET, hopper, order 462502 and 466484R1, Serial Range: 1955-1961

1шт.

622899R1

BOLT W/WING NUT, 5/16-18NC x 2-1/4 cd-pltd mach

4шт.

13270R1

BOLT, 3/8-16NC x 1-1/4 mach

6шт.

280136

NUT,3/8"-16, G8

6шт.

3299

BUSHING

NUT, 5/16-18NC wing

4шт.

Q1597

WASHER

13/32 ID x 3/4 OD x 16 ga plain

4шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lub

2шт.

5

PO1818

BUSHING

BEARING, drill shaft

2шт.

6

33405A

WASHER

WASHER, 25/32 ID x 1-1/8 OD x 22 ga plain

10шт.

7

622137R21

COLLAR W/LUBRICATION FITTING, driving

4шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

2шт.

NA62771

PIN

1/4 x 1-7/16 std-hd

2шт.

8

622122R2

GEAR

PINION, 12 teeth

2шт.

9

622121R2

PINION

10 teeth

2шт.

10

622123R2

BLOCK DRIVER

SLEEVE, driving

2шт.

11

622213R1

COLLAR, flanged

2шт.

12

110161

FITTING, 3/16 drive type lub

2шт.

13

109358

FITTING, 5/16 drive type lub

4шт.
