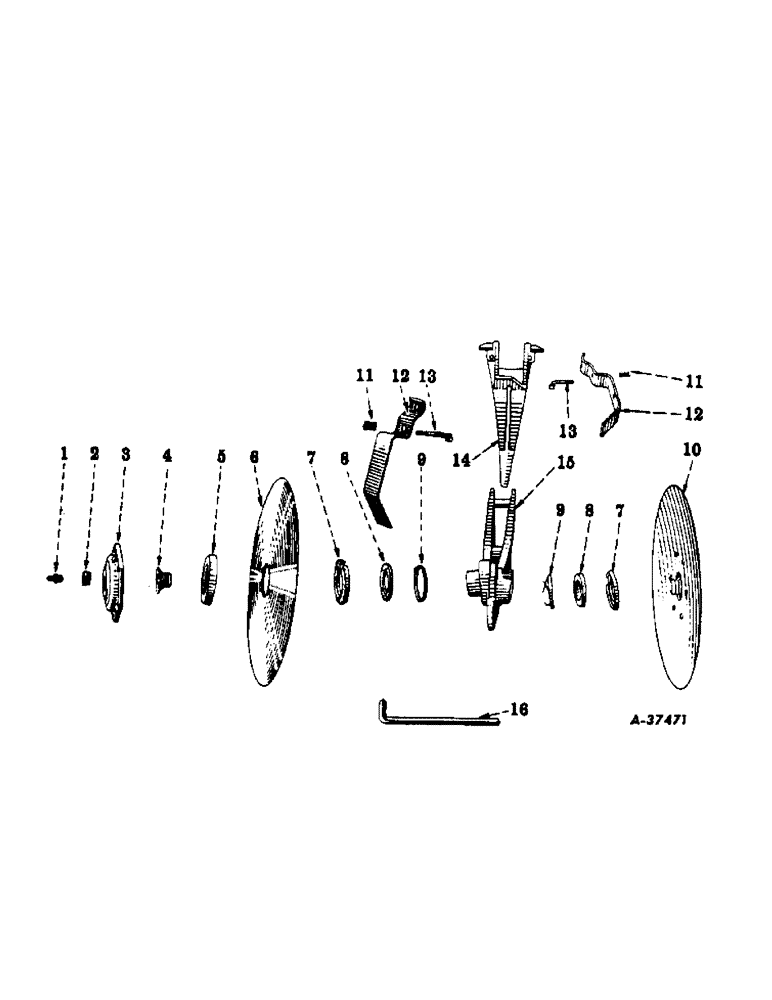

Запчасти Case IH 251 (X-11) - DOUBLE DISK OPENER AND BOOT

1

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lubrication

4шт.

2

621021R1

CONNECTOR, ELEC

PLUG, screw

4шт.

3

600760R1

HUB

disk, 1961 and since

4шт.

3

NA2552

HUB

disk, order 600760R1 and 600761R1, Serial Range: 1955-1961

4шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 9/16 rd-hd

24шт.

4

621823R1

PLUG

bearing block left

2шт.

4

621824R1

PLUG

bearing block right

2шт.

5

NA2623

BLOCK

bearing

4шт.

6

621020R1

DISC

DISK

4шт.

7

N2616

WASHER

RING, dust

4шт.

8

M10

FELT

WASHER, dust seal felt

4шт.

9

620075R1

RETAINER

felt washer spring left

2шт.

9

620076R1

RETAINER

felt washer spring right

2шт.

10

621023R93

DISC

DISK W/HUB AND BEARING LEFT

2шт.

10

621024R93

DISK W/HUB AND BEARING RIGHT

2шт.

11

6633

SPRING

4шт.

12

621015R1

SCRAPER

4шт.

13

621022R1

BOLT, 1/4-20NC x 2-1/4 mach, special bend

4шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

4шт.

14

624048R1

SHIELD, disk

2шт.

17600R11

BOLT W/NUT, 5/16-18NC x 2-3/4 hex-hd mach

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18NC hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

624049R91

RUNNER ASSY, double disk opener

2шт.

13558R1

BOLT, 3/8-16NC x 5 mach

2шт.

280136

NUT,3/8"-16, G8

2шт.

16

N62286

TOOL

WRENCH, bearing

1шт.

600761

GASKET, disk, for use with 600761R1 hub, 1961 and since

1шт.
