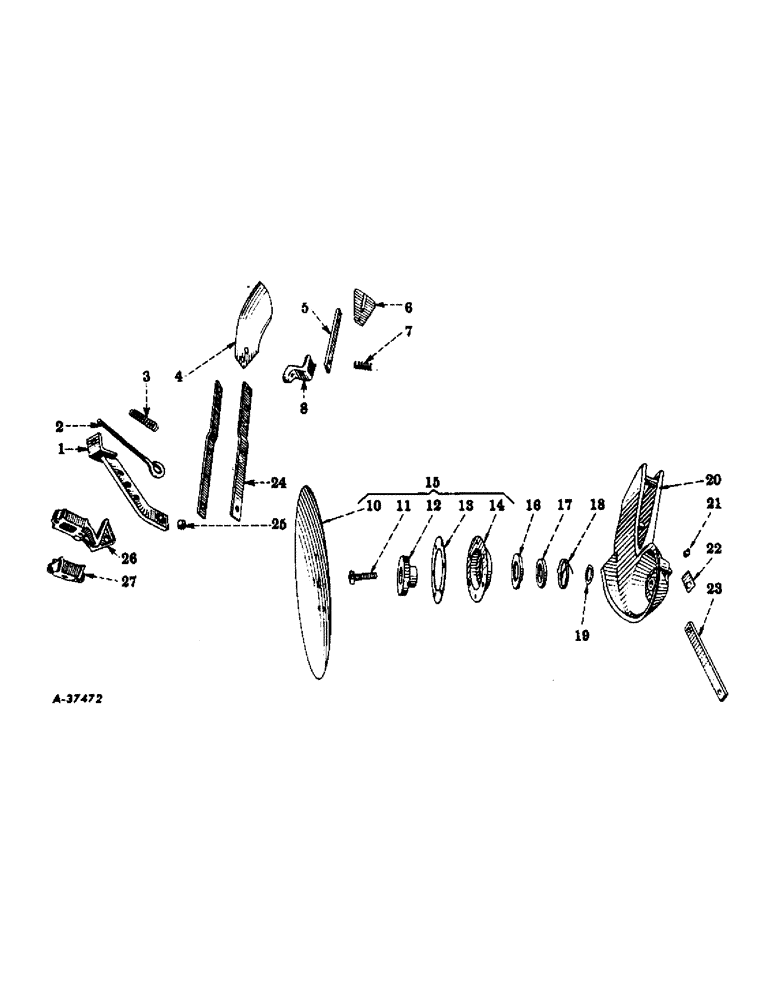

Запчасти Case IH 251 (X-10) - SINGLE DISK OPENERS

1

621454R91

ARM, support

2шт.

2

621352R11

ROD W/NUTS, adjusting

2шт.

280136

NUT,3/8"-16, G8

6шт.

104114

RIVET,But Hd, 3/8" x 1 1/8"

3/8 x 1-1/8 rd-hd

2шт.

W6652

WASHER

15/32 ID x 1 OD x 16 ga plain

4шт.

3

NLS

NO LONGER SERVICED

adjusting rod, 7/16 ID x 3-1/4 long 16 coils

2шт.

4

621426R1

SUPPORT

BLADE, covering, for right opener

1шт.

4

621427R1

BLADE

covering, for left opener

1шт.

104098

RIVET,But Hd, 5/16" x 7/8"

5/16 x 7/8 rd-hd

4шт.

5

624043R1

ARM, scraper

2шт.

6

2179AA

SCRAPER, disk

2шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 rd-hd

4шт.

6

624045R91

SCRAPER W/ARM, disk

2шт.

7

2189A

SPRING, scraper arm, 1/2 ID, 1-3/8 long 7 coils

2шт.

8

624040R1

BRACKET, scraper arm left

1шт.

8

624041R1

BRACKET, scraper arm right

1шт.

17547R11

BOLT W/NUT, 5/16-18NC x 2-1/4 hex-hd

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga plain

2шт.

9

(Not used in this application)

1шт.

10

624044R11

DISC

DISK W/PLUG

2шт.

11

620155R1

BOLT (SPREADER)

BOLT, 1/2-20NF x 1-5/8 sq-hd, special

2шт.

25-118

NUT,1/2"-20, G5

1/2-20NF hex.

2шт.

12

N2614

BLOCK

bearing

2шт.

13

N62375

GASKET

hub

2шт.

14

N2615

HUB

disk

2шт.

13955R1

RIVET, 1/4 x 3/4 csk-hd

12шт.

15

624046R91

DISK W/HUB AND BEARING

2шт.

16

N2616

WASHER

RING, dust

2шт.

17

M10

FELT

WASHER, felt

2шт.

18

620075R1

RETAINER

SPRING, dust seal left

1шт.

18

620075R1

RETAINER

SPRING, dust seal right

1шт.

19

615991R1

WASHER

1-3/32 ID x 1-1/2 Od x 26 ga plain

2шт.

20

624038R1

RUNNER, disk left

1шт.

20

624039R1

RUNNER, disk right

1шт.

13558R1

BOLT, 3/8-16NC x 5 mach

2шт.

280136

NUT,3/8"-16, G8

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight lubrication

2шт.

22

N35572

CLIP, bearing bolt locking

2шт.

23

624042R1

BRACE, runner

2шт.

17600R11

BOLT W/NUT, 5/16-18NC x 2-3/4 hex-hd

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18NC hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

621358R1

ARM, covering blade

4шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 rd-hd

2шт.

25

NA11569

BUSHING, support arm

2шт.

26

621311R1

BRACKET, covering blade left

1шт.

26

621312R1

BRACKET, covering blade right

1шт.

13271R1

BOLT, 7/16-14NC x 1-1/4 mach

2шт.

114773

NUT, 7/16-14NC hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

621313R1

CAP, covering blade bracket

2шт.

624185R1

BOLT, 3/8-16NC x 3-1/2 hex-hd, special

4шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
