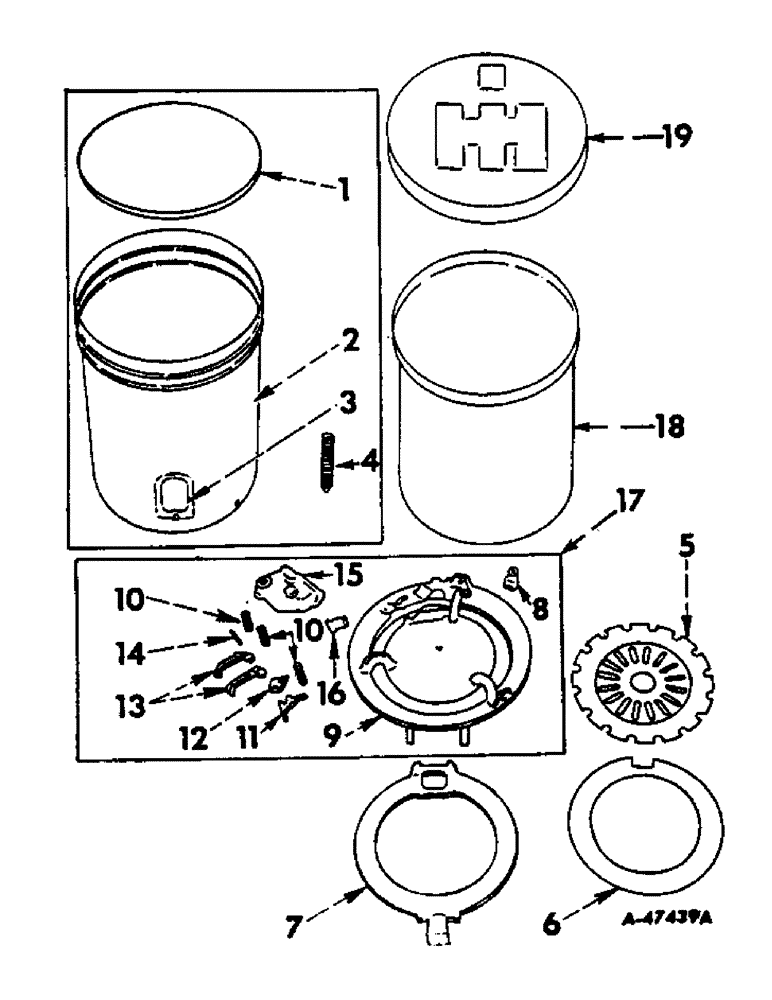

Запчасти Case IH 250 (E-50) - SEED HOPPER

626328R93

HOPPER W/BOTTOM

1шт.

1

626451R1

LID, Serial Range: 1958-1964

1шт.

1

625234R91

LID, Serial Range: 1956-1960

1шт.

2

625235R91

HOPPER, seed w/seed vision window, 1956 to 1958, order 626450R11 and 626451R1

1шт.

2

626450R11

HOPPER, less window, Serial Range: 1958-1964

1шт.

138198

ARM

SCREW, 5/16 x 3/8 C-Z slt-rd-hd mach

3шт.

3

624463R1

WINDOW

seed vision

1шт.

4

622016R1

SPRING

lid, Serial Range: 1956-1958

1шт.

5

PLATE, seed, see seed plates

1шт.

6

RING, filler, see seed plates

1шт.

7

626452R1

PLATE

reversible hopper bottom, 1961 and since

1шт.

7

624570R1

PLATE, reversible hopper bottom, Serial Range: 1956-1961

1шт.

PIN, 1/8 x 5/8 cotter

1шт.

WASHER, 9/32 x 5/8 x 16 ga

1шт.

7

464256R1

WASHER

PLATE, filler, for use with 463426R1 and 463427R1 seed plates

1шт.

8

625065R2

BUTTON

hopper bottom plate retainer

1шт.

RIVET, 1/2 x 1-5/8 b-hd

1шт.

9

BOTTOM, hopper, order 625366R91 bottom assembly

1шт.

10

2064A

SPRING

cut-off and knocker, .445 in. OD, 1-5/8 in. long, 12 coils

1шт.

11

464258R11

ARM

roller knocker

1шт.

11

625068R1

PAWL

knock-out, regular, Serial Range: 1958-1960

1шт.

11

625776R2

PAWL

knock-out, special

1шт.

12

625066R1

KNOCKER

SEAT, adjustable knocker

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 C-Z slt-rd-hd mach

1шт.

WASHER, 1/4 lock

1шт.

WASHER, 9/32 x 5/8 x 16 ga

1шт.

13

625539R91

PAWL

S, cut-off, pair of inner and outer

1шт.

14

2000AA

PIN

3/16 x 1-1/8 pawl cut-off hinge

1шт.

15

625069R3

CAP

cut-off and knocker

1шт.

BOLT W/NUT, 5/16 x 2 crg

1шт.

WASHER, 5/16 lock

1шт.

16

13607AB

HINGE

GATE, hopper bottom hinged

1шт.

17

464260

FLOW CONTROL VALVE

BOTTOM ASSEMBLY, hopper, will work for 625366R92

1шт.

Q3429

DOWEL

PIN, 5/16 x 3-1/2 dld-std-hd

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

18

474849R11

HOPPER ASSY, fiberglass small seed, 1964 and since

1шт.

133094

BRACKET

SCREW, 5/16-18 x 3/4 C-Z slt-rd-hd mach

3шт.

19

474850R1

NO LONGER SERVICED

COVER, polyethylene small seed hopper, 1964 and since

1шт.

464259R1

ROLLER

KNOCKER, seed plate roller, 1960 and since

1шт.
