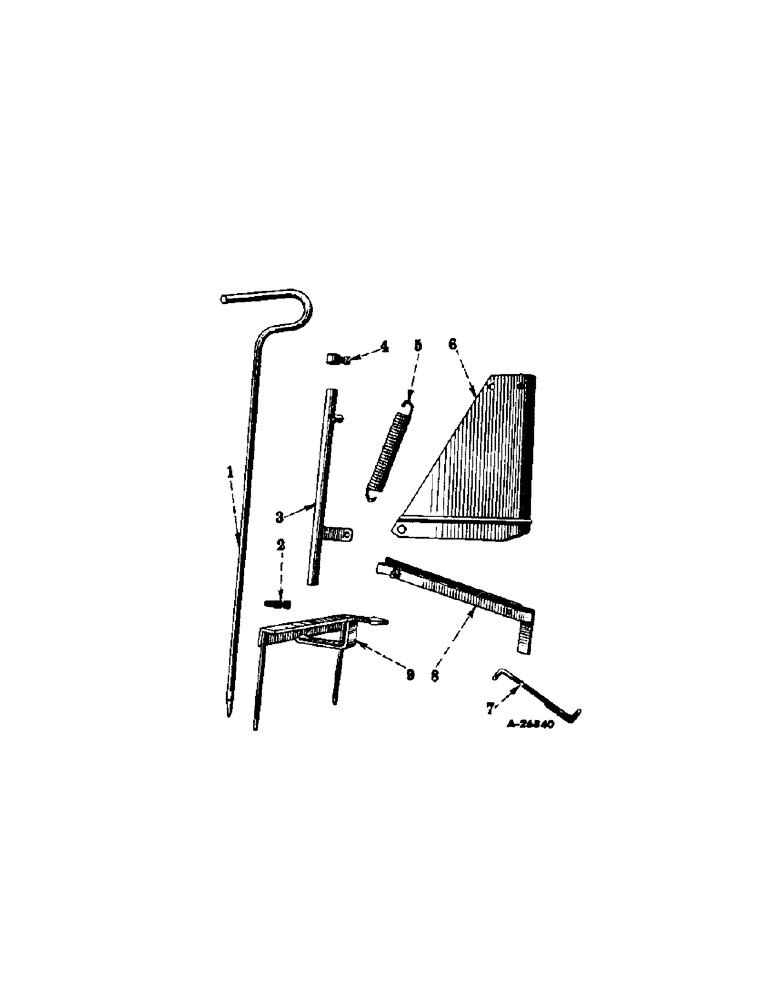

Запчасти Case IH 250 (E-38) - CHECKROW PLANTING ATTACHMENT, PAY-OUT STAKE, FOR NO. 250 PLANTER

1

33279A

STAKE, anchor

1шт.

2

33175A

U-BOLT W/NUT

1шт.

NUT, 3/8 sq

2шт.

WASHER, 3/8 lock

2шт.

3

622163R91

SLEEVE, pivot

1шт.

4

622189R91

COLLAR

W/SET SCREW

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 sq-hd set

2шт.

5

620632R3

SPRING

1шт.

6

620616R1

BELLCRANK

1шт.

PIN, 3/16 x 3/4 cotter

2шт.

Q530

HEADED PIN,7.92mm OD x 63.5mm L

PIN, 5/16 x 2-1/2 dld-std-hd

1шт.

V4941/2

PIN

5/16 x 2 dld-std-hd

1шт.

WASHER, 11/32 x 11/16 x 16 ga

1шт.

7

620538R1

HOOK, check wire

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

WASHER, 11/32 x 11/16 x 16 ga

1шт.

8

622159R91

LINK, pay-out

1шт.

PIN, 3/16 x 3/4 cotter

2шт.

WASHER, 15/32 x 3/4 x 16 ga

2шт.

9

620637R92

FOOTPIECE

1шт.
