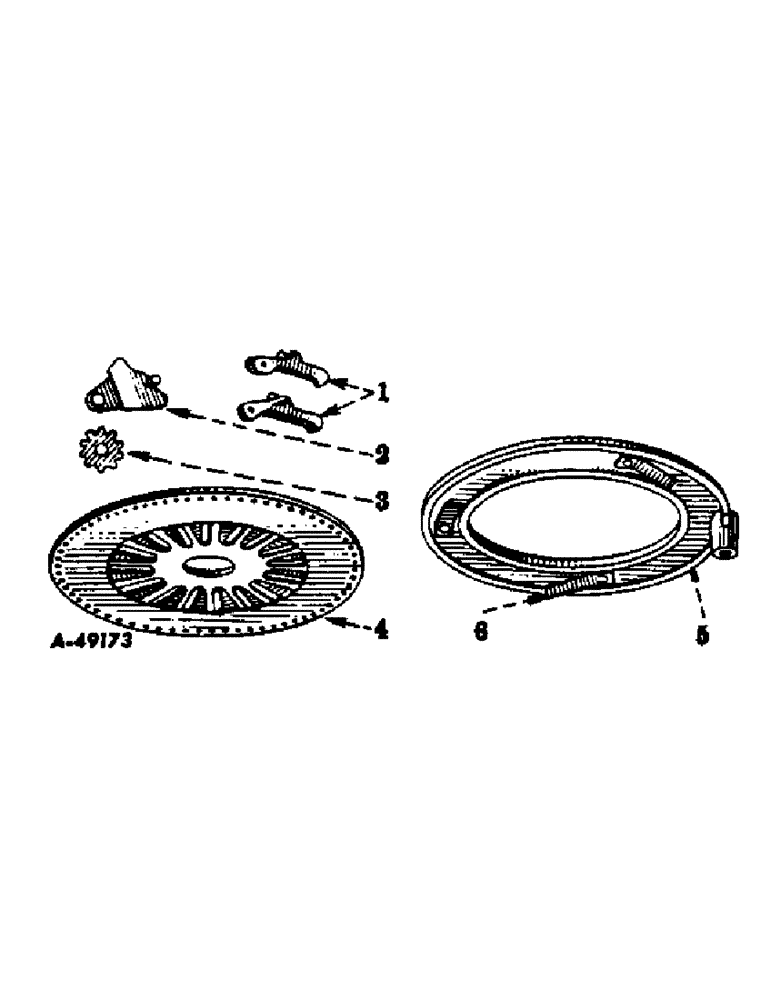

Запчасти Case IH 249 (E-52) - SEED PLATE PACKAGE, SPECIAL, FOR SEGMENTED AND DECORTICATED

1

625775R92

PAWL

cut-off, pair of inner and outer

1шт.

2

625772R21

ARM

W/STUD, roller knocker

1шт.

3

3616AA

KNOCKER

tooth roller, for 82-hole seed plate

1шт.

4

3099A

PLATE

blank seed, 9/64 in. thick drilled as ordered

1шт.

4

3615A

PLATE

seed, 82 holes, 3/16 in. dia, .127 to .145 in. thick

1шт.

4

3637A

PLATE

seed, 82 holes, 11/64 in. dia, 8/64 in. thick

1шт.

4

3639

PLATE, seed, 82 holes, 11/64 in. dia, 8/64 in. thick

1шт.

4

620081R1

PLATE

seed, 82 holes, 10/64 in. dia, 8/64 in. thick

1шт.

4

621972R1

DISC

PLATE, seed, 82 holes, 12.5/64 in. dia, .135 to .140 thick

1шт.

5

621978R31

RING

W/SPRINGS, filler

1шт.

6

33896A

SPRING, filler ring

1шт.

RIVET, 1/8 x 1/4 csk-hd al.

1шт.

626452R1

PLATE

reversible bottom

1шт.

625757R92

PLATE PACKAGE, seed, w/3099A plate

1шт.

625758R92

PLATE PACKAGE, seed, w/3615A plate

1шт.

625762R91

PLATE PACKAGE, seed, w/621972R1 plate

1шт.
