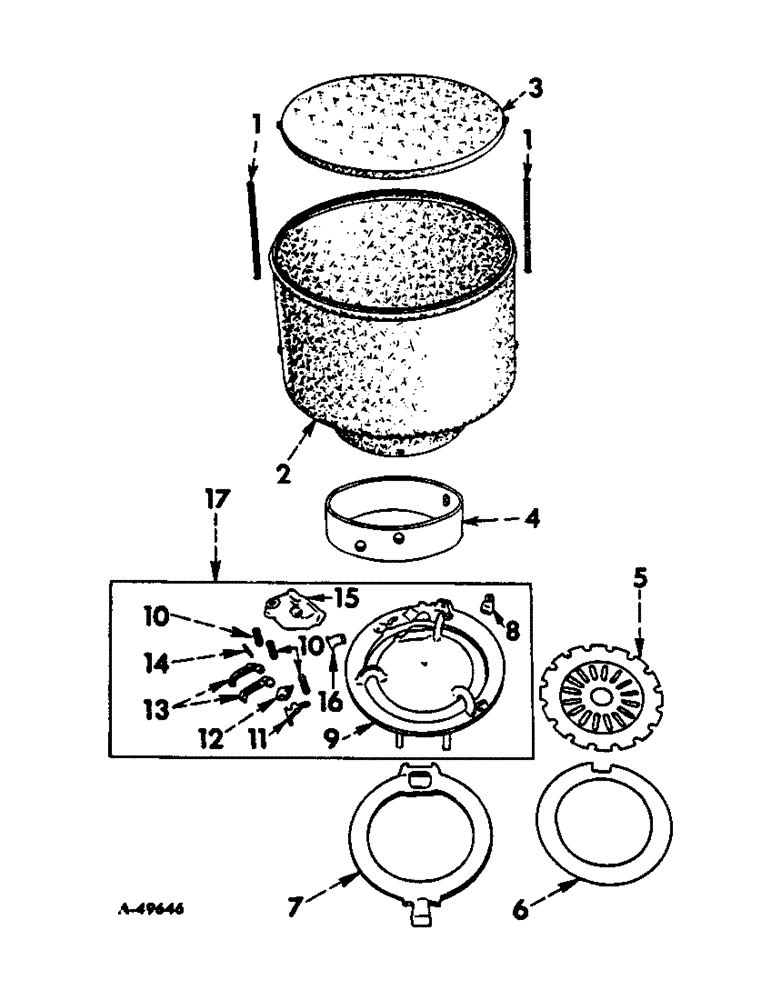

Запчасти Case IH 249 (E-51) - SEED HOPPER, LARGE CAPACITY

626443R93

HOPPER W/BOTTOM, large capacity offset seed

1шт.

1

622125R1

SPRING

lid, Serial Range: 1956-1958

2шт.

2

622135R93

HOPPER W/SPRING CLIP, seed, Serial Range: 1956-1958

1шт.

114600

COOLER

SCREW, 5/16 x 3/8 slt-rd-hd mach

4шт.

NUT, 5/16

4шт.

WASHER, 5/16 lock

4шт.

2

626466R91

HOPPER, large, 1958 and since

1шт.

2

464643R91

HOPPER, large, Richmond hopper, 1961 and since

1шт.

3

622134R91

LID W/SPRING CLIP, Serial Range: 1956-1958

1шт.

622126R1

CLIP, lid spring, Serial Range: 1956-1958

1шт.

3

626484R1

LID, hopper, 1958 and since

1шт.

4

626444R1

RING, adapter

1шт.

138198

ARM

SCREW, 5/16 x 3/8 slt-rd-hd C-Z mach

3шт.

5

PLATE, seed, see seed plates

1шт.

6

RING, filler, see seed plates

1шт.

7

468507R1

PLATE

reversible bottom, for use with 626466R91 hopper

1шт.

7

626452R1

PLATE

reversible bottom, 1961 and since

1шт.

7

624570R1

PLATE, reversible bottom, Serial Range: 1956-1961

1шт.

7

464256R1

WASHER

PLATE, filler, for use with 463426R1 and 463427R1 seed plates

1шт.

8

625065R2

BUTTON

hopper bottom plate retainer

1шт.

RIVET, 1/4 x 1-5/8 b-hd

1шт.

9

BOTTOM, hopper, order 625366R1 bottom assembly

1шт.

10

2064A

SPRING

cut-off and knocker, .445 in. OD, 1-5/8 in. long, 12 coils

1шт.

11

464258R11

ARM

roller knocker

1шт.

11

625068R1

PAWL

knock-out, regular, Serial Range: 1958-1960

1шт.

11

625776R2

PAWL

knock-out, special

1шт.

12

625066R1

KNOCKER

SEAT, adjustable knocker

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 slt-rd-hd C-Z mach

1шт.

WASHER, 1/4 lock

1шт.

WASHER, 9/32 x 5/8 x 16 ga

1шт.

13

625539R91

PAWL

S, cut-off, pair of inner and outer

1шт.

14

2000AA

PIN

3/16 x 1-1/8 pawl cut-off hinge

1шт.

15

625069R3

CAP

cut-off and knocker

1шт.

BOLT W/NUT, 5/16 x 2 crg

1шт.

WASHER, 5/16 lock

1шт.

16

13607AB

HINGE

GATE, hopper bottom hinged

1шт.

16

624711R2

GUIDE

GATE, hopper hinged

1шт.

17

464260R92

BOTTOM

ASSEMBLY, hopper, for use with 626466R91 hopper

1шт.

17

625366R91

BOTTOM

ASSEMBLY, hopper

1шт.

Q3429

DOWEL

PIN, 5/16 x 3-1/2 dld-std-hd

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

464259R1

ROLLER

KNOCKER, seed plate roller

1шт.
