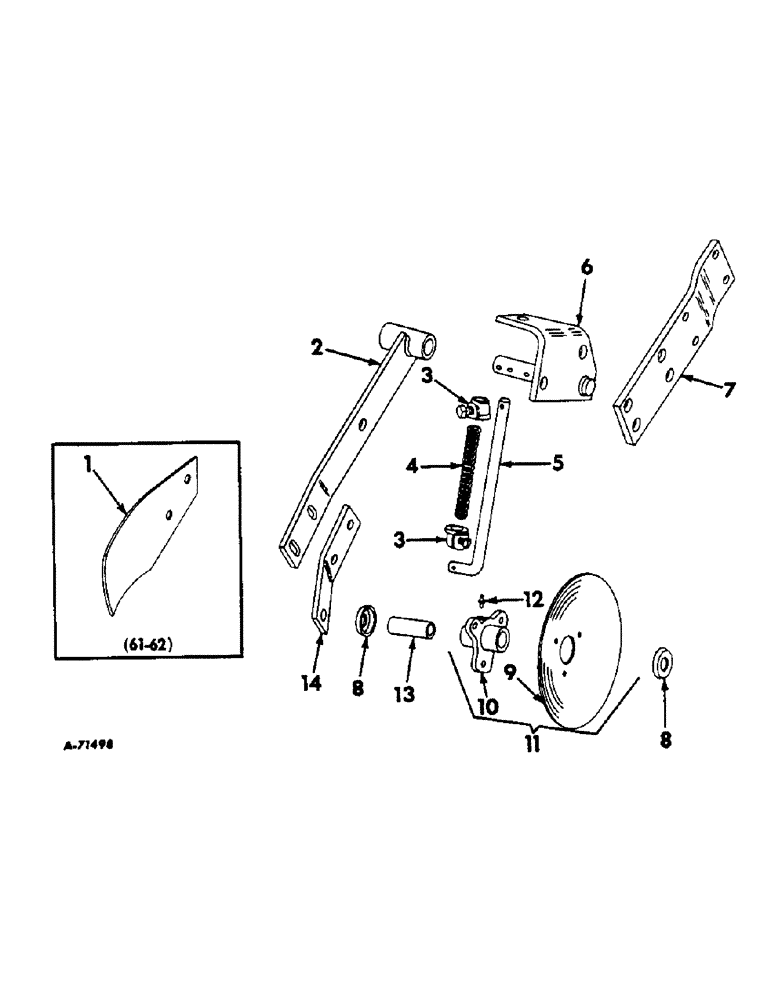

Запчасти Case IH 249 (E-47) - COVERING BLADE

1

621426R1

SUPPORT

BLADE, wide covering left, Serial Range: 1961-1962

1шт.

1

621427R1

BLADE

wide covering right, 1961 and 1962

1шт.

BOLT W/NUT, 5/16 x 1 mach

2шт.

WASHER, 5/16 lock

2шт.

2

464450R11

ARM, covering blade

1шт.

3

517951R11

WEAR PAD

COLLAR W/SET SCREW

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

1шт.

4

2833

SPRING

pressure

1шт.

5

464460R1

ROD

pressure

1шт.

PIN, 1/8 x 3/4 cotter

2шт.

6

464452R91

COVERER, bracket left

1шт.

6

464453R91

COVERER, bracket right

1шт.

PIN, 5/32 x 1-1/2 cotter

4шт.

6

471908R91

COVERER, bracket left, for 249A, 250A, 449A and 450A planters, 1963 and since

1шт.

6

471909R91

COVERER, bracket right, for 249A, 250A, 449A and 450A planters, 1963 and since

1шт.

PIN, 5/32 x 1-1/2 cotter

4шт.

7

464459R1

PLATE, adapting, for seed openers

1шт.

BOLT W/NUT, 3/8 x 1-1/2 crg

1шт.

BOLT, 3/8 x 5-3/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

WASHER, 1/2 lock

2шт.

8

517957R1

WASHER

BAND, sand, 1962 and since

1шт.

9

DISK, 7 in., 1962 and since, order 623128R12

1шт.

10

517948R21

DISC

HUB W/FITTING, disk, 1962 and since

1шт.

11

623128R12

DISC

DISK W/HUB, 1962 and since

1шт.

RIVET, 3/16 x 11/16 rd-hd

3шт.

12

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type lub, 1962 and since

1шт.

13

517958R2

BUSHING

disk hub, 1962 and since

1шт.

BOTL, 7/16 x 2-1/2 mach

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 lock

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

14

467225R1

ADAPTER, covering disk LH, 1962 and since

1шт.

14

467226R1

ADAPTER, covering disk RH, 1962 and since

1шт.

BOLT W/NUT, 5/16 x 1 crg

2шт.

WASHER, 5/16 lock

2шт.
