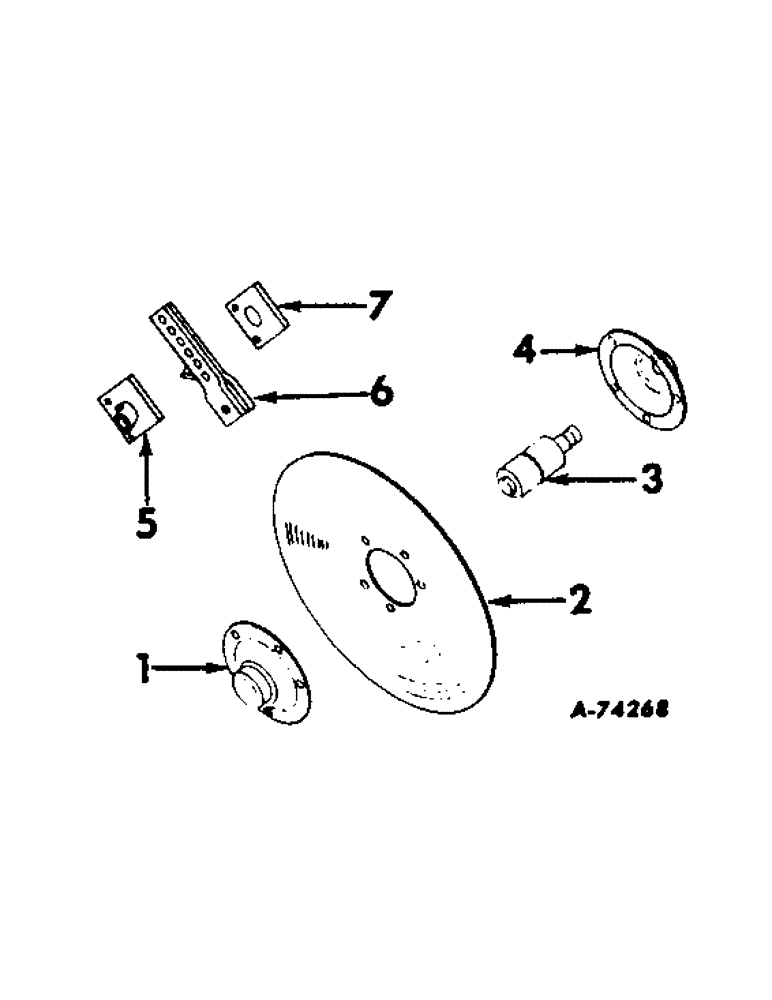

Запчасти Case IH 249 (E-42) - DISK FURROWING ATTACHMENT, 12 IN.

1

472021R1

HOUSING,38.125 mm ID x 76.2 mm OD

bearing, outer

4шт.

2

PO12859

DISK, 12 in.

4шт.

NUT, 1/4

20шт.

SCREW, 1/4 x 3/4 C-Z cap

20шт.

WASHER, 1/4 lock

20шт.

3

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING ASSEMBLY, disk

4шт.

4

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING, bearing, inner

4шт.

5

472026R91

MOUNTING ASSEMBLY, disk, LH

2шт.

SCREW, 3/8 x 3/4 sq-hd cup-pt set

2шт.

6

472023R91

BRACKET ASSEMBLY, mounting

2шт.

BOLT, 1/4 x 1 C-Z sq-nk crg

2шт.

NUT, 3/8 C-Z

6шт.

NUT, 7/16 C-Z

2шт.

SCREW, 3/8 x 1-1/4 C-Z cap

2шт.

SCREW, 3/8 x 1-3/4 C-Z cap

4шт.

WASHER, 3/8 C-Z lock

6шт.

WASHER, 7/16 C-Z lock

2шт.

7

472027R91

MOUNTING ASSEMBLY, disk, RH

2шт.

SCREW, 3/8 x 3/4 sq-hd cup-pt set

2шт.
