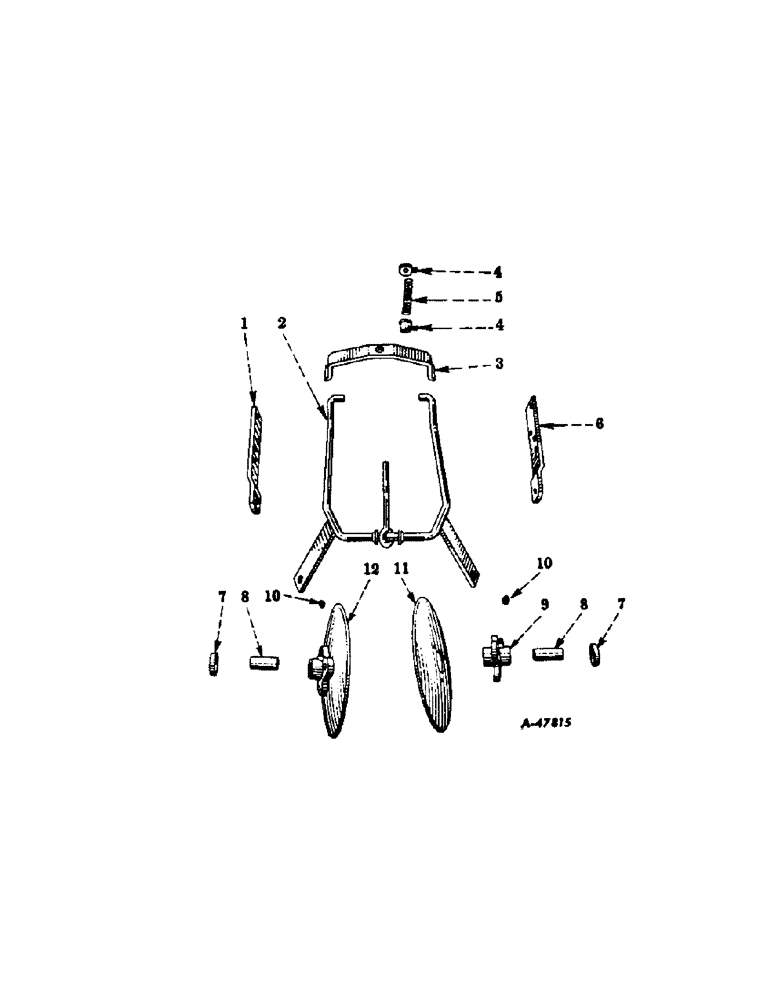

Запчасти Case IH 249 (E-40) - DISK COVERING ATTACHMENT, 1957 TO 1959

1

625769R1

EXTENSION, left press wheel drawbar

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

2

625771R91

FRAME, draw

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

PIN, 3/16 x 1 cotter

2шт.

WASHER, 13/32 x 3/4 x 16 ga

1шт.

3

625768R1

BRACKET, spring retainer

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

4

517951R11

WEAR PAD

COLLAR W/SET SCREW

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/4 sq-hd cup-pt set

1шт.

5

M92

SPRING

pressure

1шт.

6

625770R1

EXTENSION, right press wheel drawbar

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

7

517957R1

WASHER

BAND, sand

1шт.

8

623129R1

BUSHING, hub

1шт.

9

517948R11

HUB

W/LUBRICATION FITTING

1шт.

RIVET, 3/16 x 5/8 b-hd

3шт.

10

110161

FITTING, 3/16 drive type straight lub

1шт.

11

DISK, covering, not serviced separately, order 623128R12

1шт.

12

623128R12

DISC

DISK W/HUB, covering

1шт.

BOLT W/NUT, 7/16 x 2-1/2 mach

1шт.

WASHER, 7/16 lock

1шт.
