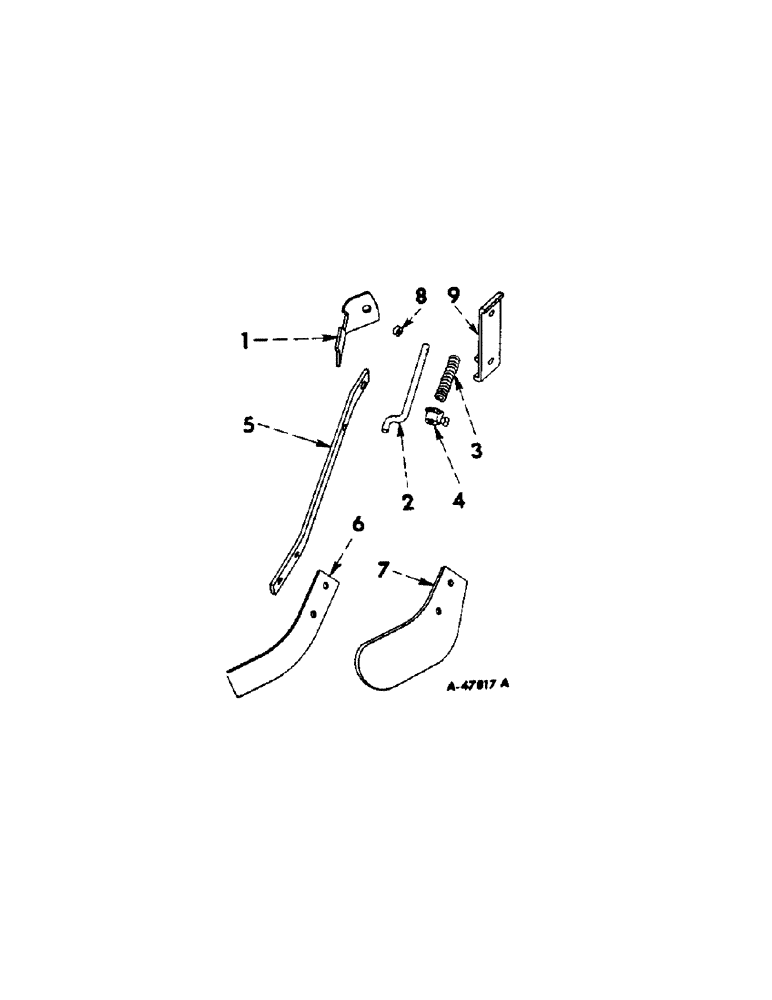

Запчасти Case IH 249 (E-40[A]) - BLADE COVERING ATTACHMENT, 1957 TO 1959

1

625342R1

BRACKET, left

1шт.

1

625343R1

BRACKET, right

1шт.

BOLT W/NUT, 1/2 x 1 mach

2шт.

WASHER, 1/2 lock

2шт.

2

625341R1

ROD, adjusting

1шт.

PIN, 1/8 x 1 cotter

1шт.

3

NLS

NO LONGER SERVICED

adjusting rod

1шт.

3

622152R1

SPRING

extension

1шт.

Required for dual press wheels

1шт.

4

517951R11

WEAR PAD

COLLAR W/SET SCREW

1шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

1шт.

5

625344R1

ARM, covering blade

1шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 13/32 x 1-1/2 x 11 ga

1шт.

5

626503R1

ARM, covering blade

1шт.

Required for dual press wheels

1шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 13/32 x 1-1/2 x 11 ga

1шт.

6

621582R1

SUPPORT

BLADE, left narrow covering

1шт.

6

621583R1

BLADE

right narrow covering

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

4шт.

WASHER, 5/16 lock

4шт.

7

621426R1

SUPPORT

BLADE, left wide covering

1шт.

Required for dual press wheels

1шт.

7

621427R1

BLADE

right wide covering

1шт.

Required for dual press wheels

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

4шт.

WASHER, 5/16 lock

4шт.

8

625347R1

BUSHING

1шт.

8

461749R1

BUSHING, see note

1шт.

9

626504R1

BRACKET, covering blade LH

1шт.

Required for dual press wheels

1шт.

9

626505R1

BRACKET, covering blade RH

1шт.

Required for dual press wheels

1шт.

SCREW W/NUT, 1/2 x 1-1/2 cap

2шт.

WASHER, 1/2 lock

2шт.
