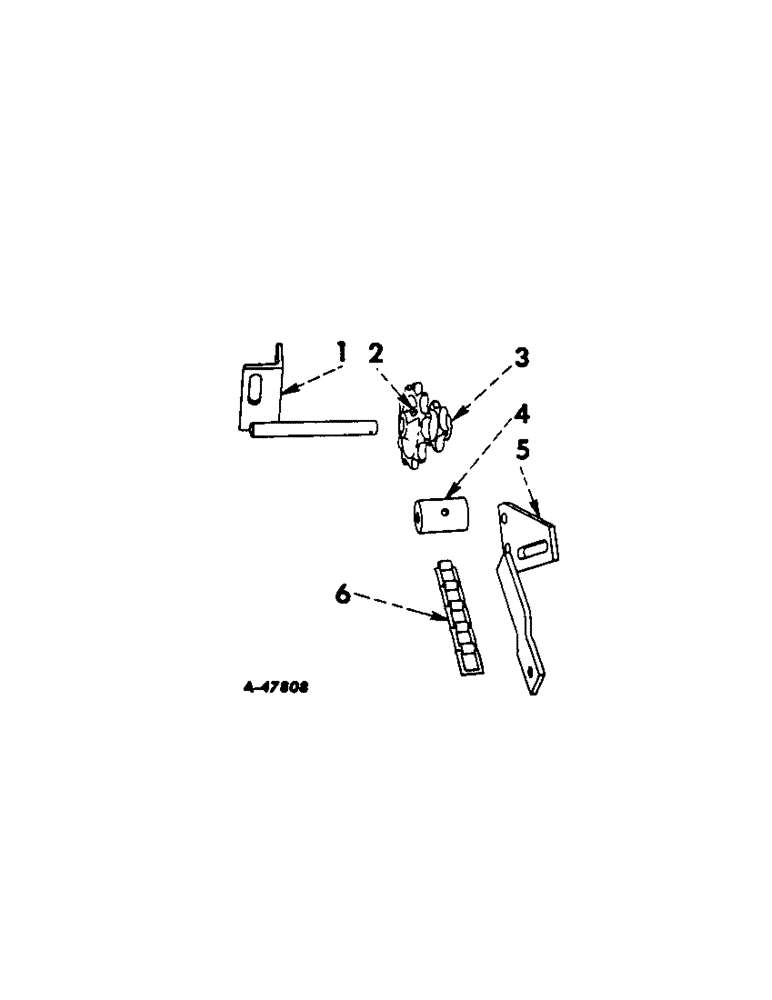

Запчасти Case IH 249 (E-39[A]) - SPEED CHANGE ATTACHMENT

1

625830R91

BRACKET, mounting

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

WASHER, 1/2 lock

2шт.

WASHER, 17/32 x 1-1/16 x 13 ga

2шт.

2

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type straight lub

1шт.

3

625823R11

SPROCKET W/LUBRICATION FITTING, 6 and 11 tooth double

1шт.

4

625824R1

ROLLER, chain tightener

1шт.

BOLT W/NUT, 1/2 x 3-3/4 mach

1шт.

5

625831R91

ARM, chain tightener

1шт.

6

CHAIN, drive, use 36 no. 32 steel links from a 10 ft roll no. CS-32

1шт.
