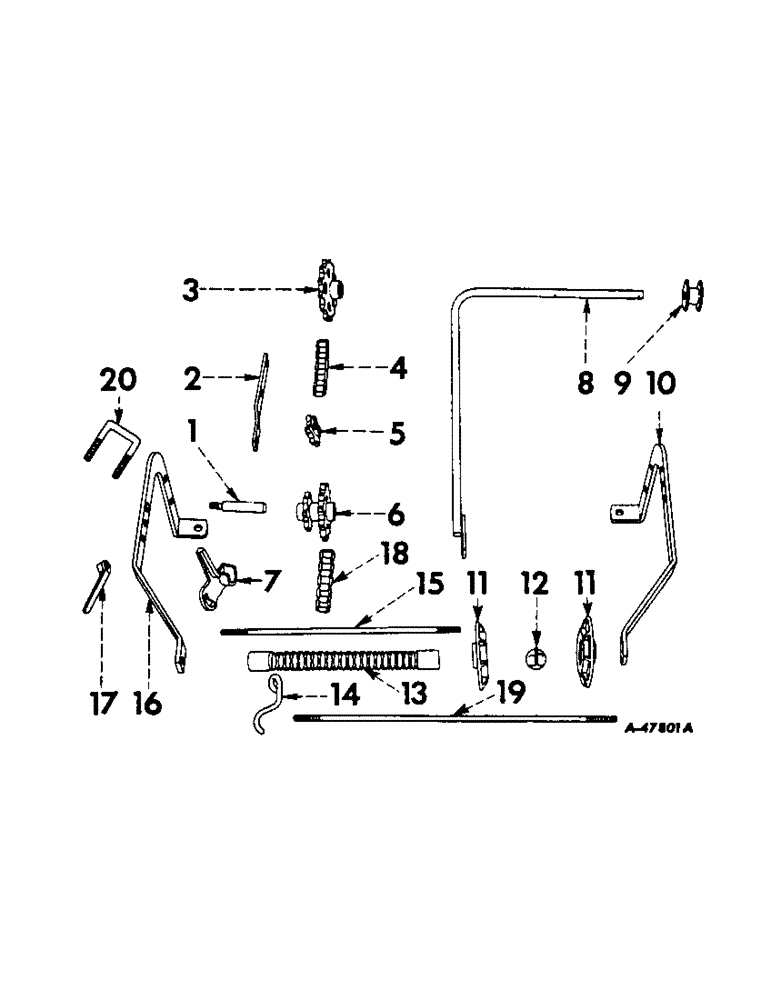

Запчасти Case IH 249 (E-34) - CHECKROW PLANTING ATTACHMENT, REEL FRAME

1

625102R1

SHAFT, reel drive stub

1шт.

NUT, 1/2

1шт.

PIN, 3/16 x 1-1/4 cotter

1шт.

WASHER, 1/2 lock

1шт.

2

625157R1

BRACE AND IDLER BRACKET, reel support, nos. 250 and 450 planters

1шт.

BOLT W/NUT, 3/8 x 1 mach

2шт.

WASHER, 3/8 lock

2шт.

WASHER, 13/32 x 1 x 16 ga

1шт.

2

626292R1

BRACKET, idler, no. 650 planter

1шт.

BOLT W/NUT, 3/8 x 1 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 13/32 x 1 x 16 ga

1шт.

3

625041R11

SPROCKET W/SET SCREW, 13 tooth reel drive, nos. 450 and 650 planters

1шт.

102893

SCREW, 3/8 x 5/8 cup-pt sq-hd set

1шт.

3

626191R1

SPROCKET, 13 tooth reel drive, no. 250 planter

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

4

CHAIN, drive, use 31 no. 32 steel links from a 10 ft roll no. CS-32, nos. 250 and 450 planters

1шт.

4

CHAIN, drive, use 35 no. 32 steel links from a 10 ft roll no. CS-32, no. 650 planter

1шт.

5

625048R1

SPROCKET, 6 tooth idler

1шт.

BOLT W/NUT, 1/2 x 2-3/4 mach

1шт.

NUT, 1/2

1шт.

6

625040R11

SPROCKET W/LUBRICATION FITTING, double

1шт.

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type straight lub

1шт.

7

625078R1

HANGER, reel shaft bearing

1шт.

8

625246R91

SUPPORT, wire guide sheave, 1957

1шт.

8

626135R11

SUPPORT, wire guide sheave, 1958 and since

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

PIN, 3/16 x 1-1/4 cotter

2шт.

WASHER, 1/2 lock

1шт.

9

625073R1

SHEAVE, wire guide

1шт.

10

625133R1

SUPPORT, reel left, no. 450 planter

1шт.

BOLT W/NUT, 1/2 x 3 mach

1шт.

WASHER, 1/2 lock

1шт.

10

626041R11

SUPPORT, reel left, no. 250 planter

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

10

626288R11

SUPPORT, reel left, no. 650 planter

1шт.

BOLT W/NUT, 1/2 x 3-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

11

624377R1

SHEAVE, half level winding

1шт.

BOLT W/NUT, 1/4 x 1-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

12

624611R1

HALF NUT, level winding sheave

1шт.

13

624610R1

SCREW, level winding

1шт.

14

625522R1

HOOK, reel drive chain, nos. 250 and 450 planters

1шт.

14

626052R1

HOOK, reel drive chain, no. 650 planter

1шт.

15

625836R1

ROD, level winding screw tie

1шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.

16

625134R1

SUPPORT, reel right, no. 450 planter

1шт.

BOLT W/NUT, 1/2 x 3-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.

16

626042R11

SUPPORT, reel right, no. 250 planter

1шт.

BOLT W/NUT, 1/2 x 2 mach

1шт.

WASHER, 1/2 lock

1шт.

16

626288R11

SUPPORT, reel right, no. 650 planter

1шт.

17

624390R1

NUT, hand

1шт.

BOLT, 3/8 X 1-1/4 step

1шт.

18

CHAIN, reel drive, use 25 no. 32 steel links from a 10 ft roll no. CS-32, nos. 250 and 450 planters

1шт.

18

CHAIN, reel drive, use 23 no. 32 steel links from a 10 ft roll no. CS-32, no. 650 planter

1шт.

19

625996R1

ROD, reel support tie, no. 650 planter

1шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.

19

626045R1

ROD, reel support tie, no. 250 planter

1шт.

NUT, 3/8

2шт.

20

626293R1

U-BOLT, reel support, no. 650 planter

1шт.

NUT, 1/2

2шт.

WASHER, 1/2 lock

2шт.
