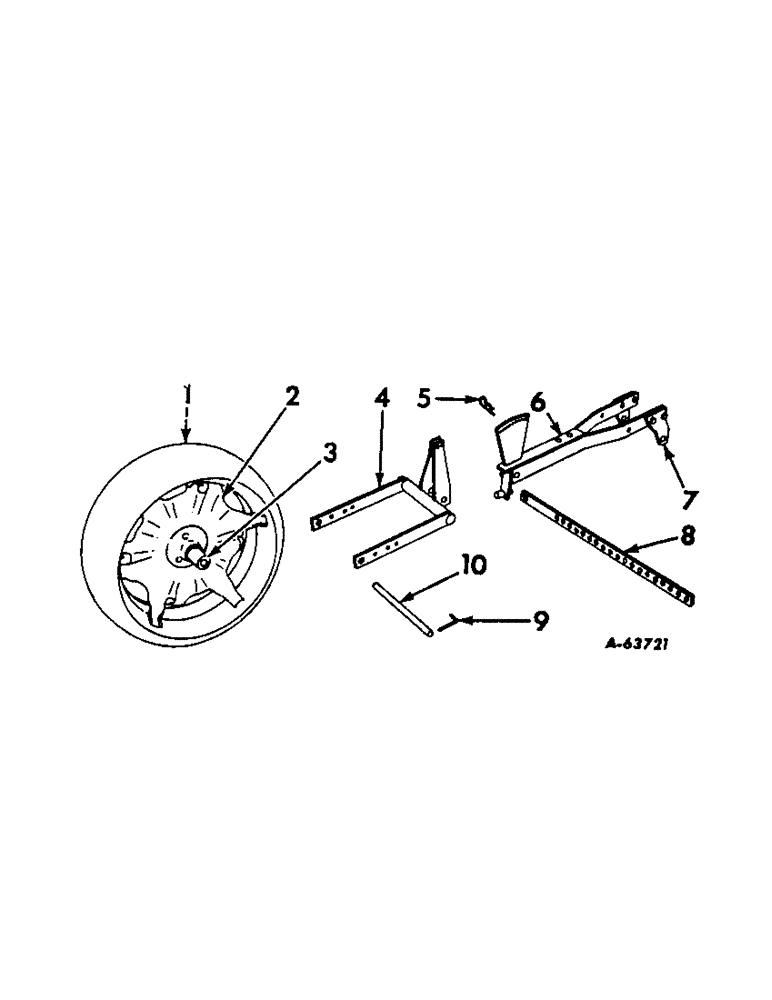

Запчасти Case IH 249 (E-29) - PRESS WHEELS

1

TIRE, zero pressure, available only in pairs, order 624709R91, special

1шт.

2

624494R91

WHEEL

press, less hub

1шт.

3

624356R11

HUB

W/LUBRICATION FITTING, press wheel

1шт.

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type straight lub

1шт.

RIVET, 3/8 x 3/4 b-hd

3шт.

4

464418R91

FRAME, press wheel

1шт.

BOLT W/NUT, 5/8 x 3-1/4 mach

1шт.

WASHER, 5/8 lock

1шт.

5

520177R1

PIN

3/16 quick-attachable cotter

1шт.

6

464423R91

DRAWBAR, press wheel

1шт.

BOLT W/NUT, 3/8 x 1-1/4 crg

4шт.

WASHER, 3/8 lock

4шт.

7

464430R1

BRACKET, left drawbar

1шт.

7

464491R1

BRACKET, right drawbar

1шт.

8

464487R1

BAR, tie

1шт.

PIN, 1/4 x 1-3/4 cotter

1шт.

9

461912R1

ROD

PIN, axle retaining

1шт.

10

461911R1

PIN

AXLE, press wheel

1шт.

PIN, 3/16 x 1-1/2 cotter

1шт.

464466R1

RETAINER

WASHER, press wheel, 1960 and since

1шт.

626497R91

WIDE FRAME DUAL PRESS WHEEL ATTACHMENT, w/o 6-1/2 x 12 in. zero pressure rubber tires, unit for one opener

1шт.
