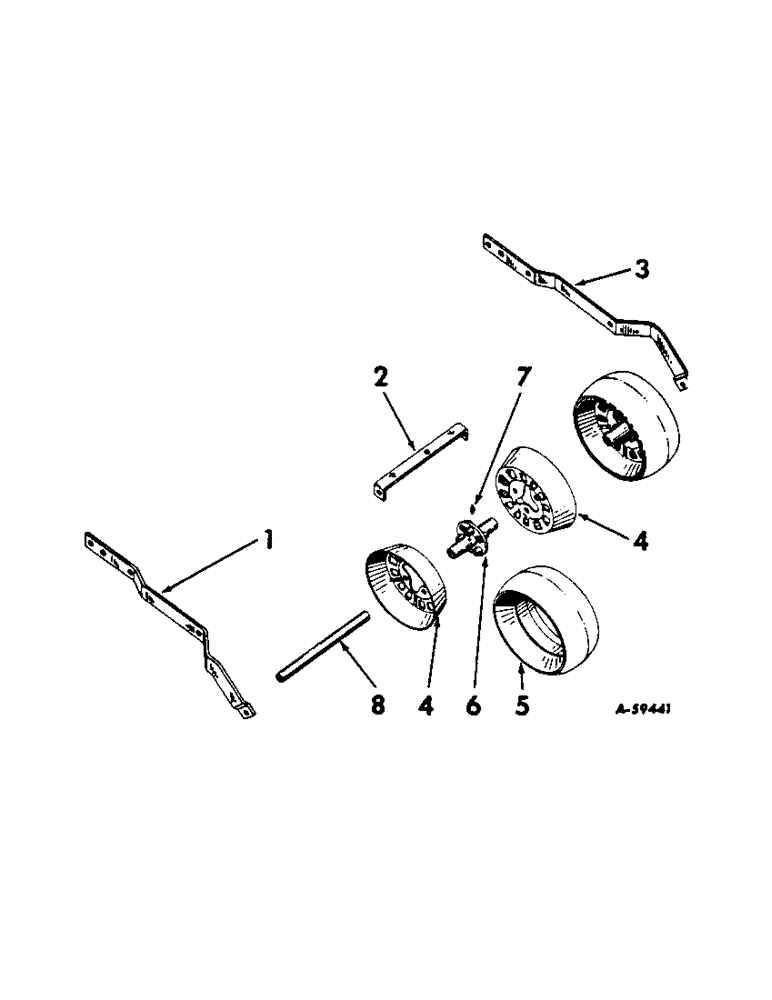

Запчасти Case IH 249 (E-29[A]) - DUAL PRESS WHEEL, 1957 TO 1959

1

626498R1

DRAWBAR, press wheel, wide, LH

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

2

626500R1

BRACE, drawbar press wheel

1шт.

3

626499R1

DRAWBAR, press wheel, wide, RH

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

4

PO2862

WHEEL, press half

4шт.

5

TIRE, zero pressure, 6-1/2 x 12 in., machine attachment

1шт.

6

PO2860

HUB, press wheel

2шт.

BOLT W/NUT, 5/16 x 1-3/4 mach

12шт.

WASHER, 5/16 lock

12шт.

7

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

67-1/2 in. lubricating

2шт.

8

626501R1

BUSHING, axle press wheel

1шт.

18078R11

BOLT W/NUT, 3/8 x 15 in. mach

1шт.

WASHER, 3/8 lock

1шт.
