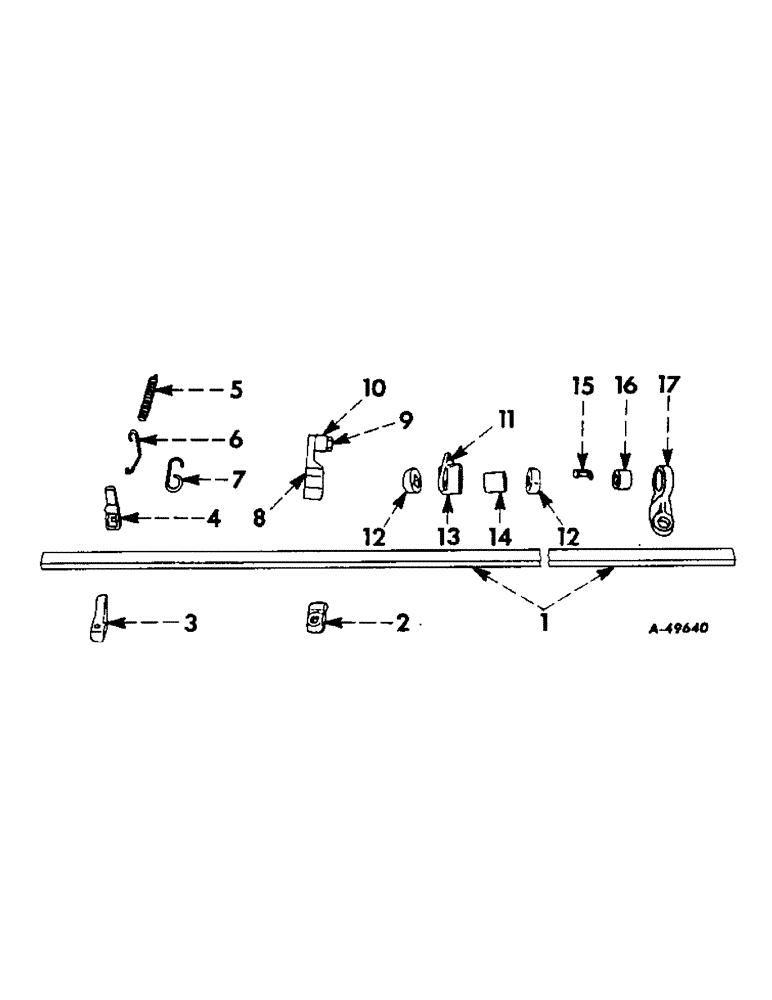

Запчасти Case IH 249 (E-23) - CHECKSHAFT

1

624442R1

CHECKSHAFT, no. 450 planter, 1957

1шт.

1

626125R1

CHECKSHAFT, no. 450 planter, 1958 and since

1шт.

1

625931R1

CHECKSHAFT, no. 650 planter

1шт.

1

626014R1

CHECKSHAFT, no. 250 planter

1шт.

2

624367R1

CAP, power drop arm, nos. 250, 450 and 650 planters

1шт.

3

624365R1

ARM, checkshaft stop, nos. 250, 450 and 650 planters

1шт.

4

625531R1

ARM, checkshaft lower stop, no. 450 planter, 1957

1шт.

4

626104R1

ARM, checkshaft lower stop, nos. 250, 450 and 650 planters, 1958 and since

1шт.

BOLT W/NUT, 3/8 x 2-1/4 crg

1шт.

WASHER, 3/8 lock

1шт.

5

622016R1

SPRING

check, no. 450 planter, 1957

1шт.

5

PO91

SPRING

check, nos. 250 and 450 planters, 1958 and since

1шт.

5

625527R1

SPRING, check, no. 650 planter

1шт.

6

625203R2

HOOK, checkshaft spring, nos. 250, 450 and 650 planters

1шт.

7

625202R1

HOOK, checkshaft lock, NO. 450 planter, 1957

1шт.

8

625253R1

ARM, power drop, nos. 250, 450 and 650 planters

1шт.

BOLT W/NUT, 3/8 x 2-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

9

625484R1

STUD, power drop roller, nos. 250, 450 and 650 planters

1шт.

10

624513R1

ROLLER, power drop arm, nos. 250, 450 and 650 planters

1шт.

11

109387

FITTING, 5/16 drive type 67-1/2 deg elbow lub, nos. 250, 450 and 650 planters

1шт.

12

625523R1

COLLAR W/SET SCREW, checkshaft center bearing, nos. 250, 450 and 650 planters

2шт.

102582

SCREW

5/16 x 1/2 cup-pt hex-soc set

2шт.

13

625035R11

BEARING W/LUBRICATION FITTING, checkshaft center, nos. 250, 450 and 650 planters

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

14

625545R1

SLEEVE, checkshaft bearing

1шт.

15

625178R1

KEEP, bearing sleeve, no. 250 planter

1шт.

16

625086R1

SLEEVE, bearing, no. 250 planter

1шт.

17

624368R1

HANGER, checkshaft bearing, no. 250 planter

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

WASHER, 1/2 lock

1шт.
