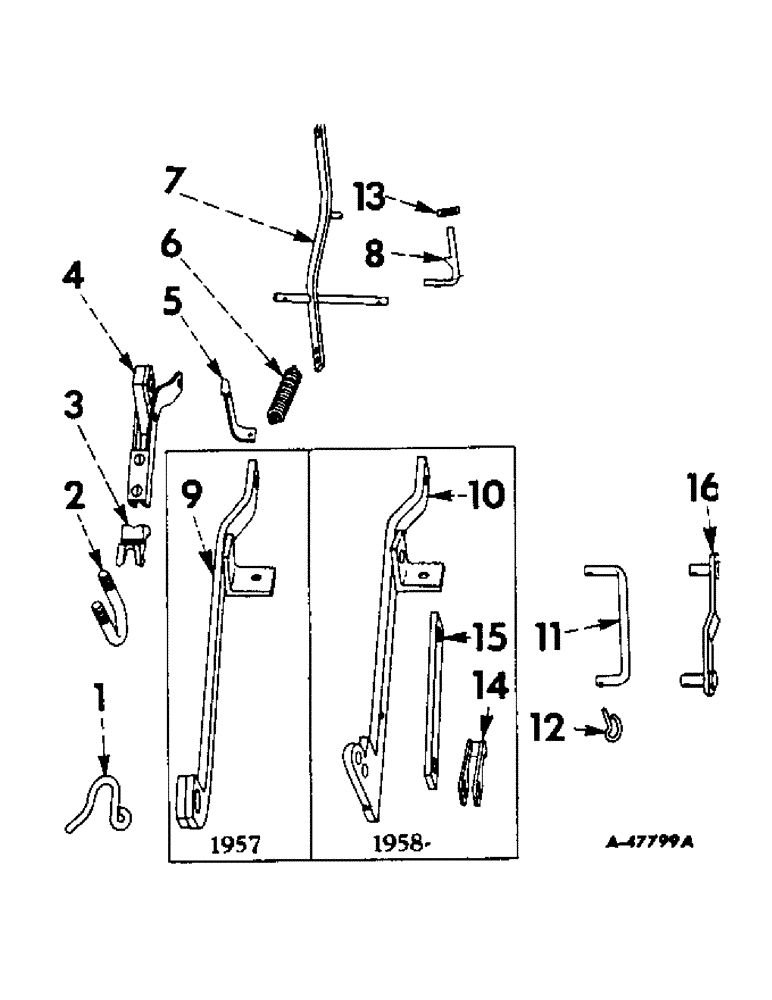

Запчасти Case IH 249 (E-22) - REMOTE CONTROL CYLINDER ADAPTER UNIT

1

625532R1

SUPPORT, hose, Serial Range: 1957-1961

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

WASHER, 13/32 x 1 x 16 ga

2шт.

2

624392R1

U-BOLT, for 449, 450, 649 and 650 planters

1шт.

2

626167R1

U-BOLT, for 249 and 250 planters

1шт.

NUT, 5/8

2шт.

WASHER, 5/8 lock

2шт.

2

464449R11

U-BOLT W/NUTS, for 249A, 250A, 449A and 450A planters

1шт.

NUT, 3/4

2шт.

WASHER, 3/4 lock

2шт.

3

625544R1

BLOCK, clamp, for 449, 450, 649 and 650 planters

1шт.

3

626158R1

PLATE, clamp, for 249 and 250 planters

1шт.

4

464443R91

ARM, lift, for 249A, 250A, 449A and 450A planters

1шт.

4

625339R91

ARM, lift, for 449 and 450 planters

1шт.

4

626248R11

ARM, lift, for 249 and 250 planters

1шт.

4

626348R91

ARM, lift, for 649 and 650 planters

1шт.

5

625336R1

HOOK, spring, Serial Range: 1957-1961

1шт.

BOLT W/NUT, 1/2 x 1-1/4 crg

1шт.

WASHER, 3/8 lock

1шт.

6

625527R1

SPRING

1шт.

PIN, 5/16 X 3/4 cotter

1шт.

7

625229R92

LEVER, trip

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

PIN, 3/16 x 1-1/4 cotter

2шт.

WASHER, 13/32 x 1 x 16 ga

1шт.

8

625806R1

REFER TO MARKER UNIT

1шт.

9

625340R91

BAR, support, for 449 and 450 planters

1шт.

10

626151R11

BAR, support, for 449, 449A, 450, 450A, 649 and 650 planters, 1958 to 1962, order 471377R11

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

BOLT W/NUT, 1/2 x 3-1/4 mach

1шт.

WASHER, 1/2 lock

2шт.

10

471377R11

BAR, remote control, for 449, 449A, 450, 450A, 649 and 650 planters, 1963 and since

1шт.

BOLT W/NUT, 1/2 x 1-3/4 mach

1шт.

BOLT W/NUT, 1/2 x 3-1/2 mach

1шт.

PIN, 5/16 x 3/4 cotter

1шт.

WASHER, 1/2 lock

1шт.

10

626250R11

BAR, support, for 249, 249A, 250 and 250A planters

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

BOLT W/NUT, 1/2 x 1-3/4 mach

1шт.

WASHER, 1/2 lock

1шт.

11

464458R1

ROD, lock, for 249A, 250A, 449A and 450A planters

1шт.

11

625337R1

ROD, lock, 1957

1шт.

11

626076R1

ROD, lock, for 249 and 250 planters

1шт.

12

460309R1

COTTER PIN

PIN, quick-attaching cotter

2шт.

13

PO37

SPRING

REFER TO MARKER UNIT

1шт.

14

626153R11

RETAINER, cylinder pin, 1958 and since

1шт.

17158R1

LOCK PIN,1/2" x 1 1/4", Slotted

Pin, 1/2" x 1 1/4", Slotted

1шт.

15

626295R1

BRACE, support bar, for 649 and 650 planters

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

1шт.

BOLT W/NUT, 1/2 x 1-3/4 mach

1шт.

WASHER, 1/2 lock

2шт.

16

626343R11

ROD, lock, for 649 and 650 planters

1шт.
