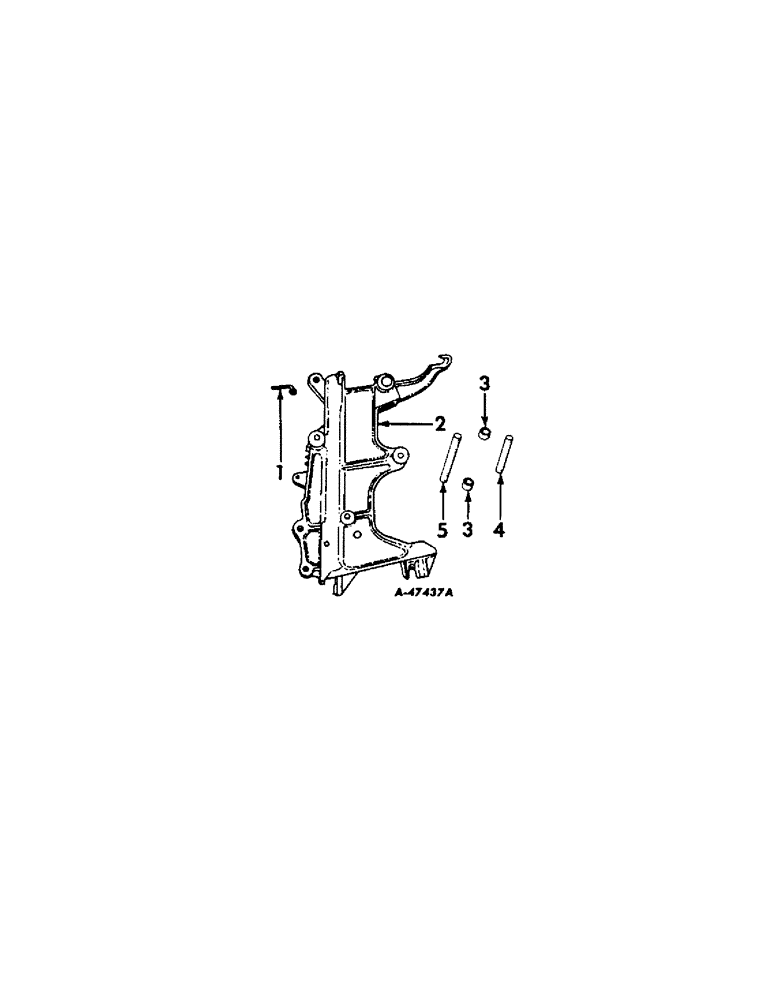

Запчасти Case IH 249 (E-18[A]) - DRILL BOOT

1

624479R1

ROD,Hex, 5/16" - 18 x 2 1/4", Bent

BOLT, hopper hold down bent

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing

1шт.

WASHER, 11/32 x 1 x 16 ga

1шт.

2

625251R3

BOOT, drill, for 625251R1 order ref. 2, 3, 4 and 5

1шт.

3

461902R1

SPACER

2шт.

4

461900R1

PIVOT, lower drawbar, used for straight runner

1шт.

PIN, 1/8 x 1 cotter

2шт.

WASHER, 7/16 lock

2шт.

5

461901R1

PIVOT, lower drawbar, used for double disk opener

1шт.

PIN, 1/8 x 1 cotter

2шт.

WASHER, 19/32 x 1 x 16 ga

2шт.
