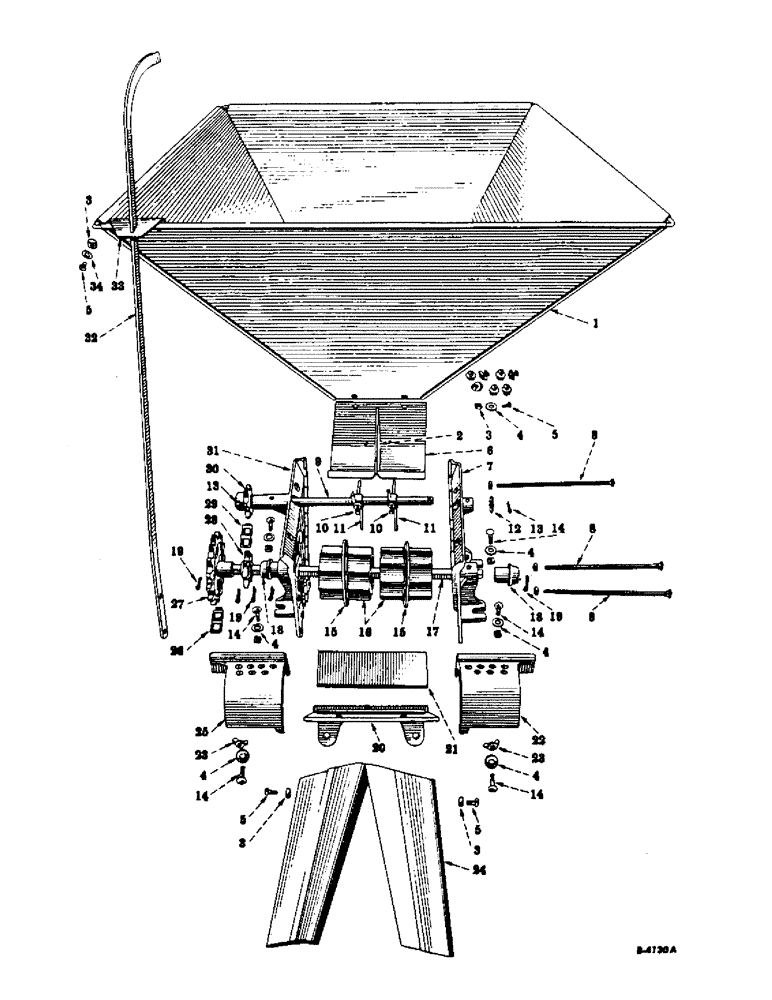

Запчасти Case IH 5 (Y-4) - HOPPER AND FEED CUP

1

N11293

HOPPER ASSY

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-rd-hd mach

8шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

8шт.

2

W7855

PLATE, center

1шт.

3

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-rd-hd mach

2шт.

6

W7854

FRONT SIDE AND BOTTOM, feed cup

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

15370R1

BOLT, 1/4 x 7-3/4 sq-nk crg

3шт.

15013R1

BOLT, 1/4 x 1-1/8 sq-nk crg

4шт.

7

BA525X

PLATE ASSY, right feed cup

1шт.

8

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 x 5/8 STR lub, drive type

2шт.

9

W7846

ROD, grain agitator

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

10

NLS

NO LONGER SERVICED

1/4 x 1/2 C-Z sq-hd cup-pt set

1шт.

11

F900

FINGERS, agitator

2шт.

119504

1/4 x 1/2 C-Z sq-hd cup-pt set

2шт.

12

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

13

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 C-Z sq-nk crg

1шт.

14

15013R1

BOLT, 1/4 x 1-1/8 sq-nk crg

1шт.

15

B284R

RING, rosette

2шт.

16

B285R

ROLL, feed

2шт.

17

W7847

SHAFT, grain feed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

5шт.

18

B474RD

BEARING, journal

2шт.

19

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20

B528R1

PLATE, rear feed cup

1шт.

21

W7839

PLATE, grain feed cover

1шт.

22

BA283R

PLATE, right cut-off

1шт.

18627R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT, 1/4 x 1 C-Z sq-nk crg

2шт.

23

126177

WING NUT

NUT, 1/4-20 C-Z wing

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

24

N12806

SPOUT ASSY, grain

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-rd-hd mach

2шт.

25

B282

PLATE, left cut-off

1шт.

26

623055R91

CHAIN, drive, 31 steel links, no. 25 chain

1шт.

27

B376RD

SPROCKET, 15 T

1шт.

28

B533R

SPROCKET, 7 T

1шт.

29

N12804

CHAIN, drive, 16 steel links, no. 25 chain

1шт.

30

J584

SPROCKET, 6T

1шт.

31

BA524X

PLATE ASSY, left feed cup

1шт.

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 x 5/8 STR lub, drive type

2шт.

32

N11239

HANDLE, shifter lever

1шт.

W6108

PIN, 5/16 x 13/16 std-hd

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

33

N11240

GUIDE, shifter lever handle

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 C-Z slt-rd-hd mach

2шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
