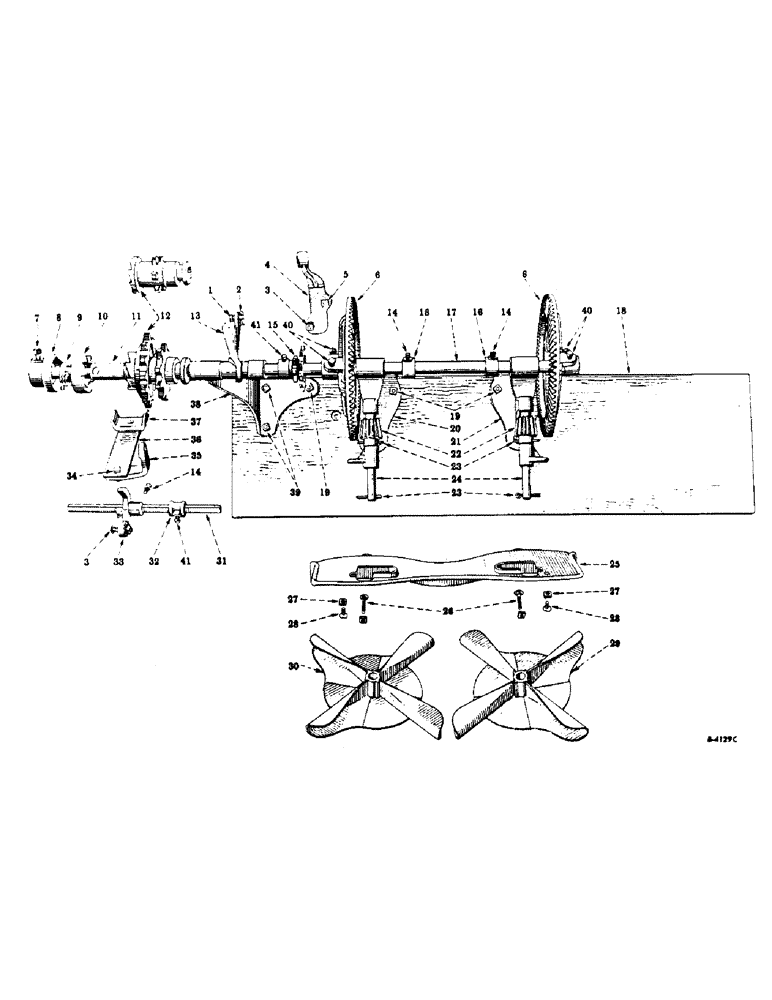

Запчасти Case IH 5 (Y-2) - MAIN DRIVE SHAFTS, ENDGATE, AND FANS
№
Артикул
Название
Примечание
Количество
1
W6108
PIN, 5/16 x 13/16 dld-std-hd
1шт.
2
PIN, 3/32 x 5/8 cotter
1шт.
3
18674R1
BOLT,Short NK, 5/16"-18 x 1 1/2", G2
5/16 x 1-1/2 C-Z sq-nk crg
1шт.
4
BB532X
BRACKET ASSY, outer end feed shaft
1шт.
18674R1
BOLT,Short NK, 5/16"-18 x 1 1/2", G2
5/16 x 1-1/2 C-Z sq-nk crg
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
120376
NUT,5/16"-18, G5
1шт.
5
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 x 5/8 STR lub, drive type
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga C-Z
1шт.
6
B448RDX
GEAR W/SET SCREWS, bevel, 78 T
2шт.
19579R1
SET SCREW
SCREW, 7/16 x 7/8 C-Z sq-hd cup-pt set
4шт.
7
19888R1
SCREW, 7/16 x 1 C-Z sq-hd cup-pt set
1шт.
8
B321X
COLLAR
CASE W/SET SCREW, left piece spring
1шт.
19888R1
SCREW, 7/16 x 1 C-Z sq-hd cup-pt set
1шт.
9
4360
SPRING
clutch
1шт.
10
B322
CLUTCH
CASE, right piece spring
1шт.
11
B323R
SPACER
SLEEVE, spring case
1шт.
12
BA507
SPROCKET ASSY.
SPROCKET AND CLUTCH, 6T, special
1шт.
12
622195R21
SPROCKET ASSY.
SPROCKET ASSY, 9 and 12T
1шт.
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 x 5/8 STR lub, drive type
1шт.
13
BA453
LEVER, shifter
1шт.
14
102893
SCREW, 3/8 x 5/8 sq-hd cup-pt set
3шт.
15
623697R11
SPROCKET ASSY.
SPROCKET W/SCREW, double, 6 and 12T
1шт.
102892
SET SCREW
3/8 x 1/2 sq-hd cup-pt set
1шт.
16
B296X
COLLAR W/SET SCREW
2шт.
102893
SCREW, 3/8 x 5/8 sq-hd cup-pt set
2шт.
17
W1959
SHAFT, main drive
1шт.
18
NA12800
ENDGATE ASSY
1шт.
120376
NUT,5/16"-18, G5
1шт.
18482R1
BOLT,Short NK, 5/16"-18 x 2", G2
5/16-18 x 2 C-Z sq-nk crg
1шт.
101934
SCREW
no. 10 x 1-1/2 slt-f-hd wood
6шт.
19
18677R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2
BOLT, 5/16 x 1-1/2 C-Z sq-nk crg
1шт.
19
15046R1
BOLT, 5/16 x 1-5/8 sq-nk crg
1шт.
20
BA529RDX
BRACKET ASSY, left countershaft and fan shaft
1шт.
18674R1
BOLT,Short NK, 5/16"-18 x 1 1/2", G2
5/16 x 1-1/2 C-Z sq-nk crg
3шт.
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 x 5/8 STR lub, drive type
3шт.
120376
NUT,5/16"-18, G5
3шт.
21
BB530X
BRACKET ASSY, right countershaft and fan shaft
1шт.
18674R1
BOLT,Short NK, 5/16"-18 x 1 1/2", G2
5/16 x 1-1/2 C-Z sq-nk crg
3шт.
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 x 5/8 STR lub
3шт.
120376
NUT,5/16"-18, G5
3шт.
22
BA449R
GEAR
PINION, bevel, 11T
2шт.
23
455182R1
LOCK PIN,3/16" x 1 1/8", Slotted
Pin, 3/16" x 1 1/8", Slotted
2шт.
24
W5968-1
SHAFT
fan
2шт.
PIN, 3/16 x 1-1/2 cot.
2шт.
25
NA544
PLATE, bed
1шт.
26
15046R1
BOLT, 5/16 x 1-5/8 sq-nk crg
2шт.
27
120376
NUT,5/16"-18, G5
4шт.
28
113913
BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5
SCREW, 5/16 x 7/8 slt-fl-hd mach
2шт.
29
NA12802
FAN
ASSY, right
1шт.
104068
RIVET, 3/16 x 5/8 rd-hd But Hd, 3/16" x 5/8"
4шт.
112420
RIVET, 3 lb. tinners
4шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
30
NA12801
FAN
ASSY, left
1шт.
104068
RIVET, 3/16 x 5/8 rd-hd But Hd, 3/16" x 5/8"
4шт.
112420
RIVET, 3 lb. tinners
4шт.
20328R1
COTTER PIN,3/16" x 1 1/2"
3/16" x 1 1/2"
1шт.
31
W6351
ROD, gear
1шт.
32
B463RDX
GUIDE W/SET SCREW, shifter lever worm
1шт.
102892
SET SCREW
3/8 x 1/2 sq-hd cup-pt set
1шт.
33
B466RDX
YOKE
W/SET SCREW, shifter
1шт.
102893
SCREW, 3/8 x 5/8 sq-hd cup-pt set
1шт.
34
18674R1
BOLT,Short NK, 5/16"-18 x 1 1/2", G2
5/16-18 x 1-1/2 C-Z sq-nk crg
1шт.
120376
NUT,5/16"-18, G5
1шт.
35
BA508R
ARM, chain tightener
1шт.
36
N12805
TURNBUCKLE
TIGHTENER, chain
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8-16 x 1 C-Z hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
37
SHOE, chain tightener, order tightener assy, N12805
1шт.
13969R1
RIVET, 5/16 x 7/8 csk-hd
1шт.
38
BA531X
BRACKET ASSY, countershaft end
1шт.
15046R1
BOLT, 5/16 x 1-5/8 sq-nk crg
1шт.
109455
LUBE NIPPLE,5/16" x .56 lg, Drive
FITTING, 5/16 x 5/8 STR lub, drive type
2шт.
39
18677R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2
BOLT, 5/16 x 2-1/2 C-Z sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
3шт.
40
19579R1
SET SCREW
SCREW, 7/16 x 7/8 C-Z sq-hd cup-pt set
1шт.
41
102892
SET SCREW
3/8 x 1/2 sq-hd cup-pt set
1шт.
Выбрано товаров: 77
