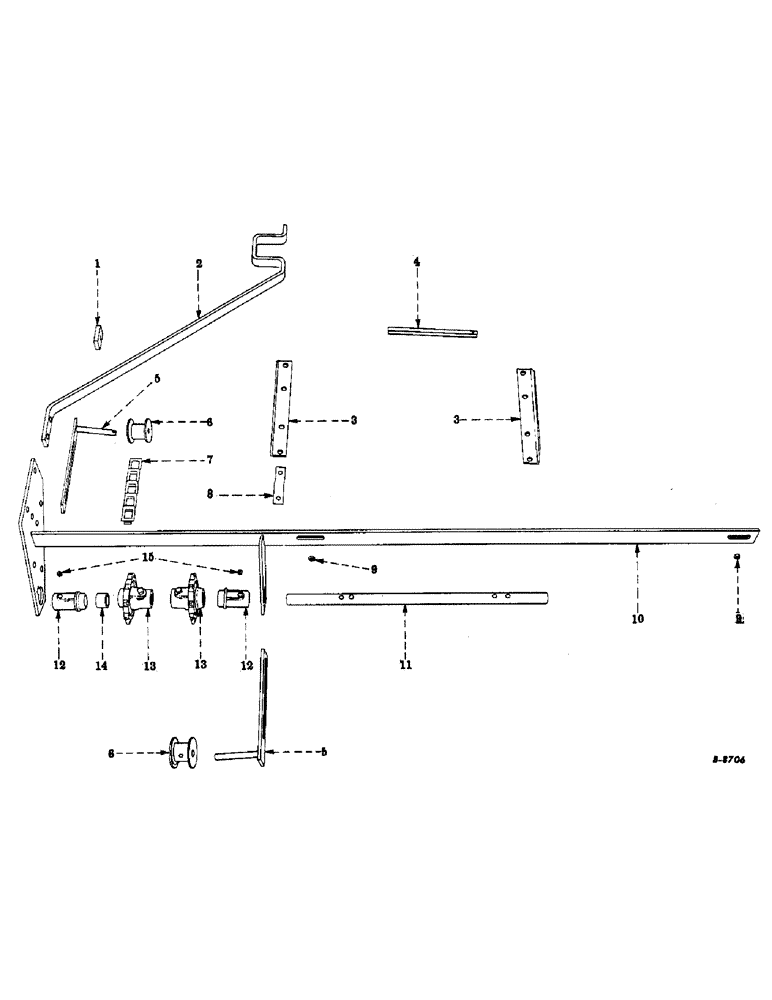

Запчасти Case IH 5 (Y-9) - ADAPTER UNIT

1

N32261

SPACER, for nos. 10 or 14 wagon box with four-way endgate

1шт.

2

623692R1

BRACE, horizontal side

1шт.

18497R

BOLT, 1/2-13 x 1-3/4 C-Z hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

624703R1

BRACKET, board

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

4шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

611346R1

WASHER

13/32 x 7/8 x 16 ga C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

623694R1

ROD, short gear

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

623691R11

TIGHTENER ASSY, chain

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

N2400

ROLLER, chain tightener

2шт.

7

624000R91

CHAIN, countershaft drive, 46 steel links, no. 34 chain

1шт.

8

624702R1

BRACE, for no. 100 wagon box

1шт.

9

13348A

BUSHING, for no. 100 wagon box

2шт.

10

623695R92

BRACKET ASSY, adapter

1шт.

624721R1

BOLT, 1/2-13 x 1-3/4 spec-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

WASHER, 17/32 x 1 x 16 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

11

623686R2

COUNTERSHAFT

1шт.

21742R1

WASHER

1-1/32 x 1-1/2 x 22 ga C-Z

2шт.

12

PO1872

BEARING

2шт.

13

23685R11

SPROCKET W/SET SCREW

2шт.

19579R1

SET SCREW

SCREW, 7/16-14 x 7/8 C-Z sq-hd cup-pt set

2шт.

14

14294L

SPACER, replaces 624704R1

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 x 3/4 STR lub.

2шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16-18 x 1-3/4 sq-nk crg, for endgate board or no. 100 grain box

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , For endgate board or no.100 grain box 5/16"

4шт.
