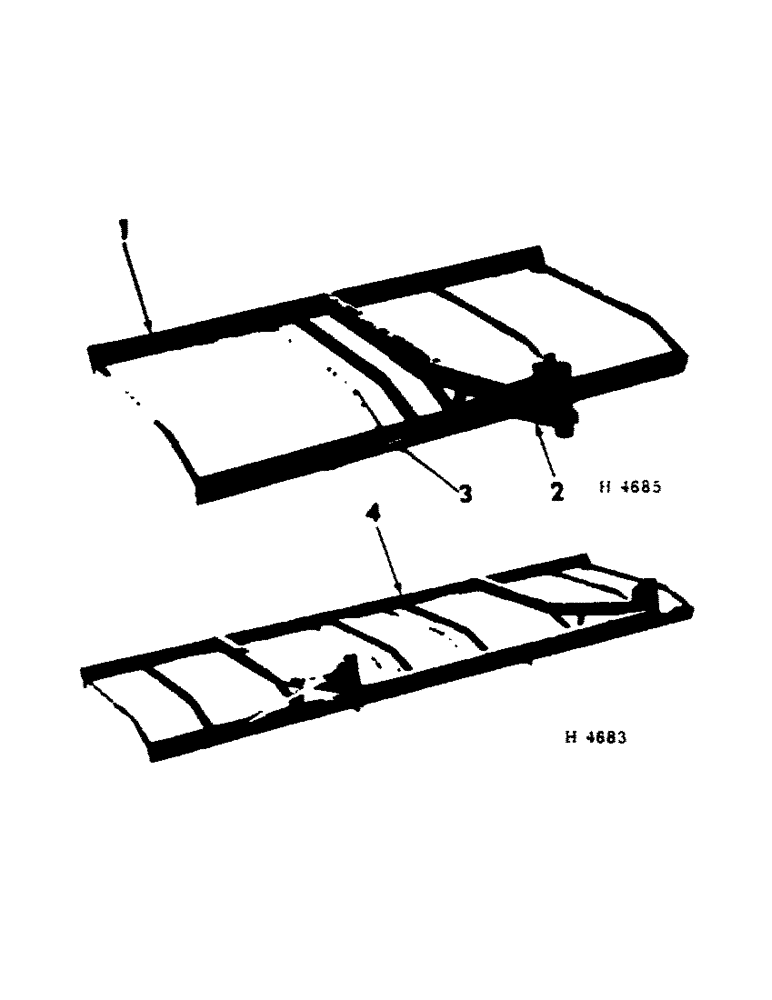

Запчасти Case IH 100 (B-04[1]) - MAIN FRAME

1

609172R91

FRAME, 16 x 6 w/double rockshaft (Prior to June, 1966)

1шт.

1

594755R91

FRAME, 16 x 6 w/single rockshaft (June, 1966 & since)

1шт.

1

604486R91

FRAME, 10 x 6

1шт.

1

604051R92

FRAME, 12 x 6

1шт.

1

604052R92

FRAME, 14 x 6

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

603959R1

BRACE, frame caster barrel (10 x 6, 12 x 6, 14 x 6 & 16 x 6) (1969 & since)

2шт.

3

609374R1

BRACE, I-Beam LH (16 x 6) (1969 & since)

1шт.

3

609375R1

BRACE, I-Beam RH (16 x 6) (1969 & since)

1шт.

3

605954R1

BRACE, I-Beam LH (12 x 6 & 14 x6) (1969 & since)

1шт.

3

605955R1

BRACE, I-Beam RH (12 x 6 & 14 x 6) (1969 & since)

1шт.

4

604053R92

FRAME, 24 x 6

1шт.

4

604054R92

FRAME, 20 x 7

1шт.

4

604055R92

FRAME, 24 x 7

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.
