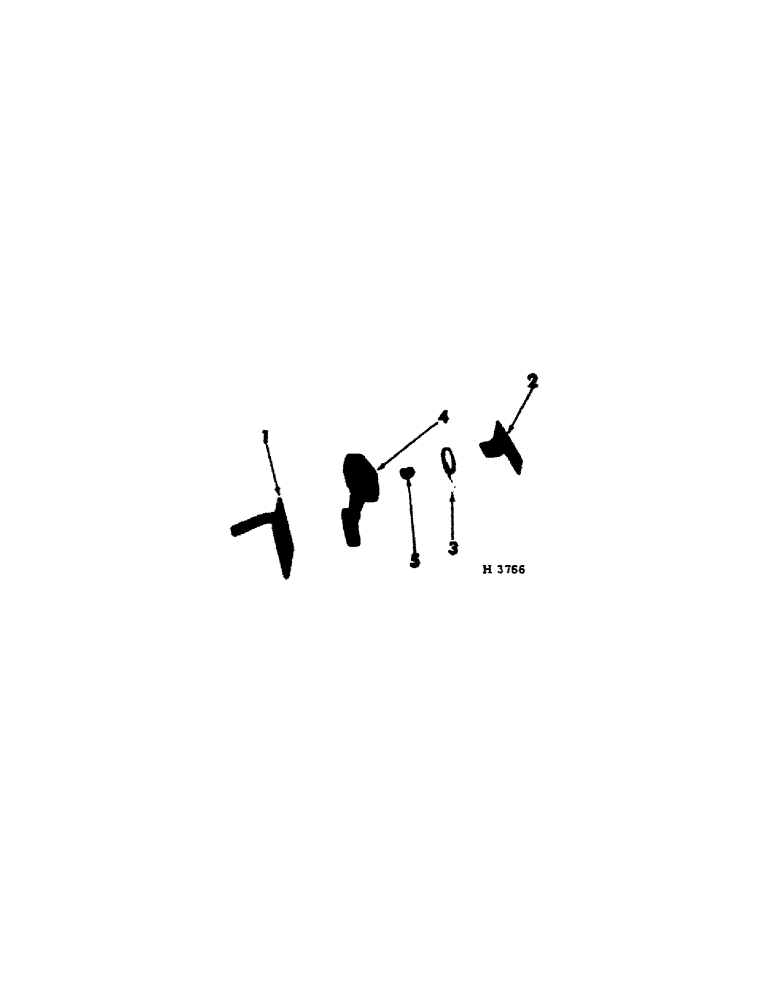

Запчасти Case IH 100 (B-03[2]) - HOPPER LID FASTENER, 1960 SEASON AND SINCE

1

604445R91

STOP

grain lid fastener

1шт.

1

604446R91

STOP, fertilizer lid fastener

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

2

604451R1

ANGLE

BRACKET, lid fastener

1шт.

120571

SCREW

1/4 X 1/2" SLT-TR-HD SCREW

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

604448R1

SPRING

lid fastener

1шт.

4

604454R1

LATCH

hopper lid

1шт.

120573

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 X 1" SLT-RD-HD SCREW

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

604447R1

BUSHING

lid fastener latch

1шт.
