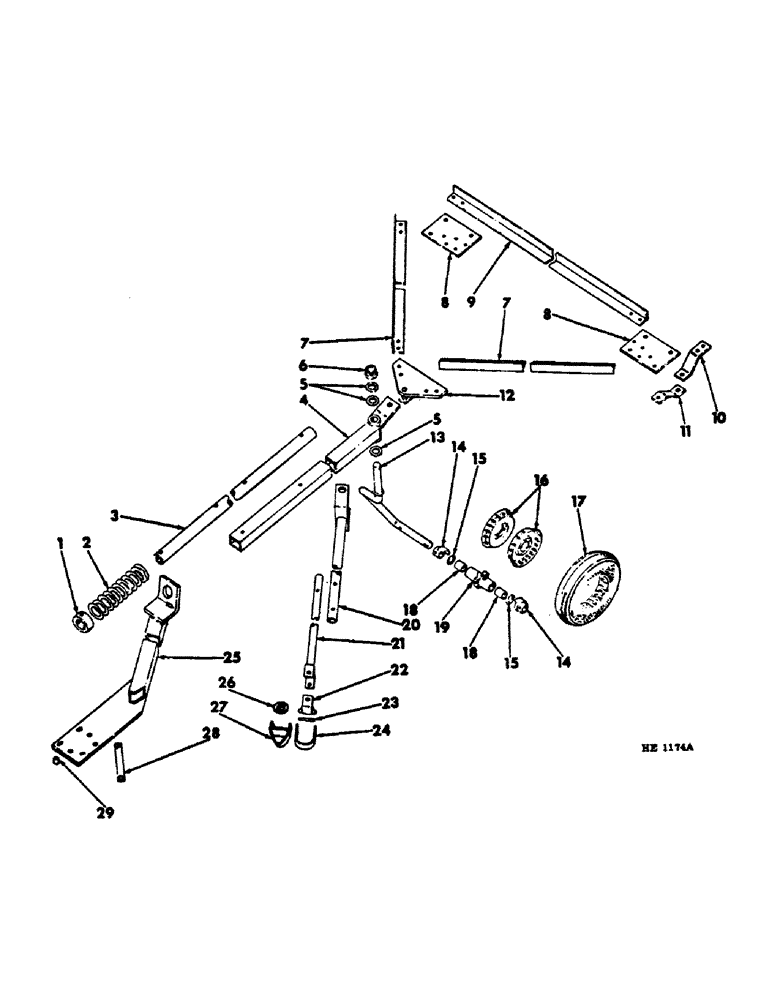

Запчасти Case IH 100 (B-42) - SPRING CUSHION HITCH

1

811705C2

COLLAR, hitch spg retaining

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 X 5" BOLT

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

331523R2

VALVE SPRING

SPRING, hitch

1шт.

3

811706C2

PIPE, hitch front

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 X 3-3/4" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

21669R1

HEADED PIN,3/4" x 2 13/16"

3/4 X 3-1/2" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

4

811707C2

TUBE, hitch rear (For use w/7 & 8 furrow no.'s 700 & 710 plows)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

22807R1

CLEVIS PIN

1 X 3" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

5/8 X 3-3/4" BOLT

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT

2шт.

4

811708C2

TUBE, hitch rear (For use w/5 & 6 furrow no.'s 700, 710 & 770 plows)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

22807R1

CLEVIS PIN

1 X 3" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 X 3-3/4" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

5

23044R1

WASHER, 1-13/32 x 2-1/2 x 16 ga

3шт.

6

PO2249A

COLLAR

axle

1шт.

S7395

WASHER

5/16 X 1-5/8" SPECIAL-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

811716C1

ANGLE, rear trail hitch (For use w/7 & 8 furrow no.'s 700 & 710 plows)

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

8

811718C1

PLATE, rear hitch (For use w/7 & 8 furrow no.'s 700 & 710 plows)

2шт.

New part number

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

811717C1

ANGLE, rear hitch trail (For use w/7 & 8 furrow no.'s 700 & 710 plows)

1шт.

New part number

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

811720C1

STRAP, hitch trail lower rear (For use w/7 & 8 furrow no.'s 700 & 710 plows)

1шт.

New part number

1шт.

180155

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16 X 2-1/4" BOLT

4шт.

NLS

NO LONGER SERVICED

7/16" NUT

4шт.

662454R1

HEADED PIN,3/4" x 5"

3/4 X 5" STD-HD-DLD PIN

2шт.

New part number

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

11

811719C1

STRAP, hitch trail lower front (For use w/7 & 8 furrow no.'s 700 & 710 plows)

2шт.

New part number

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 X 1-3/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

12

811713C2

PLATE, hitch (For use w/7 & 8 furrow no.'s 700 & 710 plows)

1шт.

New part number

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

13

811730C1

AXLE, caster wheel

1шт.

14

619235R1

SHIELD, caster wheel dirt

2шт.

617941R1

PIN,5/16" x 2", Coiled

2шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1/8" LUB-FITTING

1шт.

15

615290R1

WASHER

1-13/32 x 1-15/16 x 16 ga

2шт.

16

602542R1

DISC, cast wheel

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

17

602530R1

TIRE, 4 x 16" semi-pneumatic

1шт.

18

619241R1

BUSHING, caster wheel hub

2шт.

19

619234R1

HUB, caster wheel

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

20

811727C1

TUBE, adjusting hitch

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

21

811725C1

TUBE, telescoping hitch

1шт.

Q3434

PIN

3/4 X 3-1/4" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

22

811723C1

YOKE, hitch adjusting

1шт.

G161

1/2 X 4-1/2" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

23

811722C1

SPACER, anchor clevis

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 X 4-3/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

24

811721C1

CLEVIS, hitch anchor (For use w/5, 6, 7 & 8 furrow no. 700 plow only)

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 X 4-3/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

25

811700C2

HITCH, front

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 X 7-1/2" BOLT

3шт.

467750R1

WASHER

.781 X 1.500 X .105" WASHER (3 used on 5 & 6 furrow plow only)

1шт.

280954

NUT,3/4"-10, G5

3шт.

26

491554R1

WASHER

safety light socket support (For use w/5 & 6 furrow no. 770 plow only)

1шт.

27

811195C1

CLEVIS, hitch anchor (For use w/5 & 6 furrow no. 770 plow only)

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 X 4-3/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

28

811192C1

BAR, hitch clamping (For use w/5 & 6 furrow no. 770 plow only)

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 X 7-1/2" BOLT

2шт.

467750R1

WASHER

.781 X 1.500 X .105" WASHER

2шт.

280954

NUT,3/4"-10, G5

2шт.

29

821784R1

SPACER, front hitch (For use w/5 & 6 furrows no. 700 plow only)

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 X 7-1/2" BOLT

1шт.

467750R1

WASHER

.781 X 1.500 X .105" WASHER

1шт.

280954

NUT,3/4"-10, G5

1шт.
