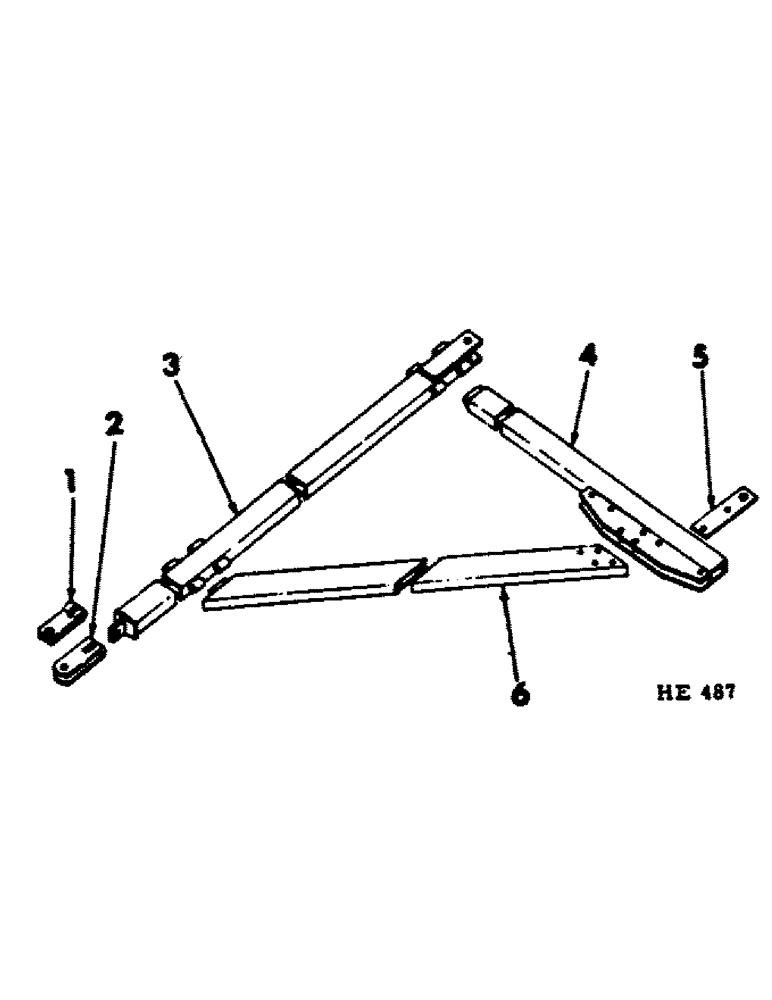

Запчасти Case IH 100 (B-41) - THREE DRILL HITCH, 24 X 6, 20 X 7 AND 24 X 7

1

601909R1

CLEVIS

hitch (w/crawler tractor application)

1шт.

2

601910R3

CLEVIS

tractor

1шт.

608605R1

BOLT,Hex, 1" - 8 x 4 1/2", Drilled

1 X 4-1/2" DLD BOLT

1шт.

609836R1

WASHER

1-1/32 X 1-3/4 X 16 GA WASHER

2шт.

9849633

NUT,1"-8, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

3

609910R91

BEAM, center tow

1шт.

722344R1

1 X 3-3/4" STD-HD-DLD PIN

1шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

1шт.

4

609901R91

BEAM, cross tow

2шт.

609908R1

7/8 X 7-7/8" STD-HD-DLD PIN

2шт.

668752R1

WASHER

29/32 X 1-1/4 X 16 GA WASHER

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

5

609898R1

BAR

outer tie hitch

4шт.

72234R1

1 X 3-3/4" STD-HD-DLD PIN

2шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

2шт.

609899R1

HITCH TIE BAR SPACER

2шт.

609900R1

HITCH TIE BAR FRONT SPACER

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8 X 4" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

609906R11

BEAM, diagonal tow

2шт.

609909R1

7/8 X 8-3/8" STD-HD-DLD PIN

2шт.

668752R1

WASHER

29/32 X 1-1/4 X 16 GA WASHER

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 X 3-1/4" BOLT

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
