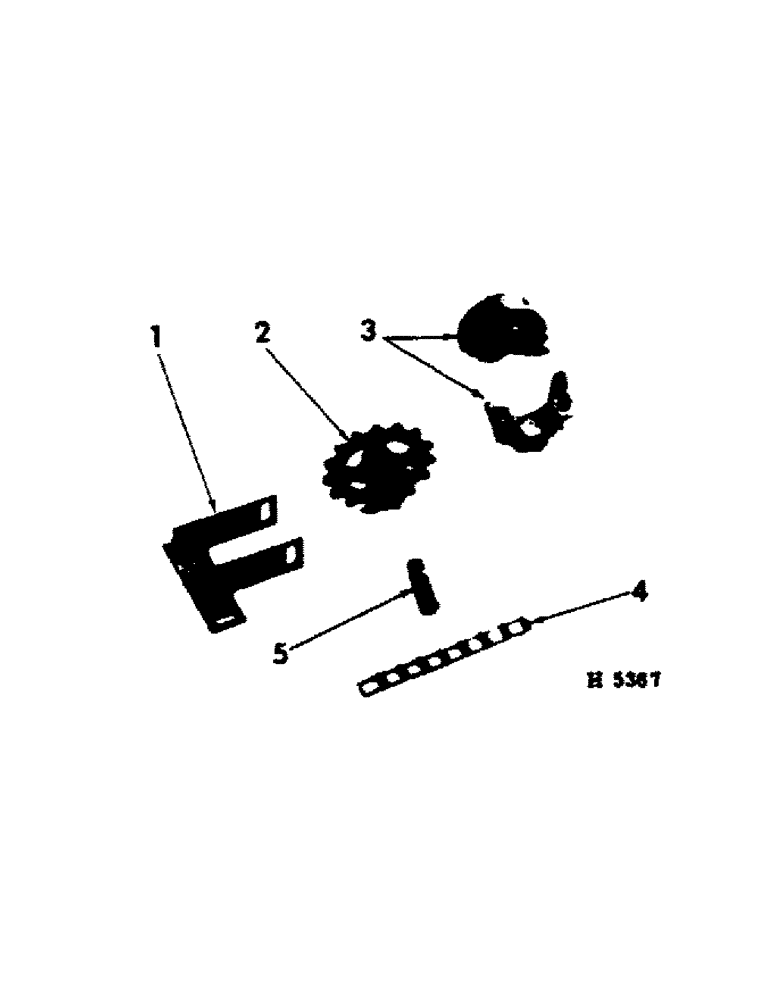

Запчасти Case IH 100 (B-41[1]) - SPEED REDUCER, SPECIAL

1

604538R91

BRACE

reducer mounting

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

604530R1

SPROCKET ASSY.

SPROCKET, 7T & 15T reducer double

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

1/2 X 4-1/4" BOLT

1шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

604529R1

SPROCKET ASSY.

SPROCKET, 10T roller split

2шт.

139329

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

1/4 X 5/8" HDLS CONE-PT SET SCREW

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 X 1-1/2" BOLT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

CHAIN, reducer drive (Order 1 - CS-32 steel 10 ft chain & reduce to 24 links)

1шт.

5

604531R1

SPACER

JOURNAL, reducer sprocket

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

1/2 X 4-1/4" BOLT

1шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
