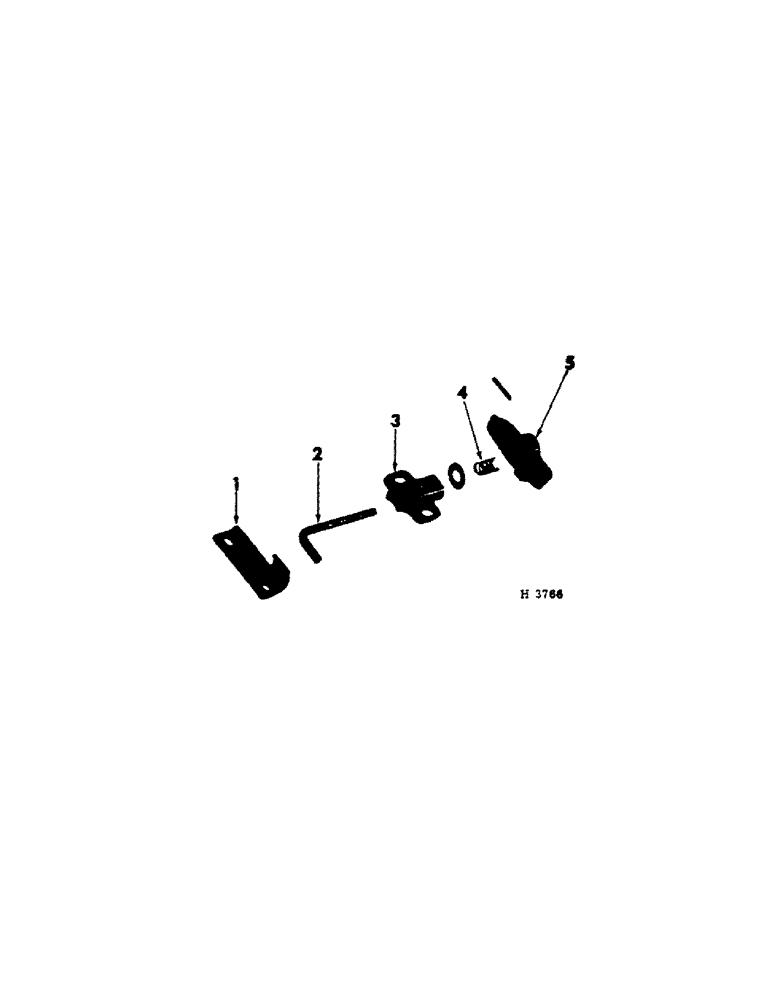

Запчасти Case IH 100 (B-03[1]) - HOPPER LID FASTENER, 1959 SEASON ONLY

1

603259R1

BRACKET, grain lid fastener

1шт.

1

603502R1

BRACKET, fertilizer lid fastener

1шт.

120573

SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 X 1" SLT-TR-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

603135R1

SHAFT, lid fastener

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

142488

GROOVED PIN,1/8" x 1", Type A

1/8 X 1" SLT-SPG PIN

1шт.

3

603130R1

BEARING, lid fastener

1шт.

4

66A

SPRING, lid fastener

1шт.

5

603129R1

HANDLE, lid fastener

1шт.
