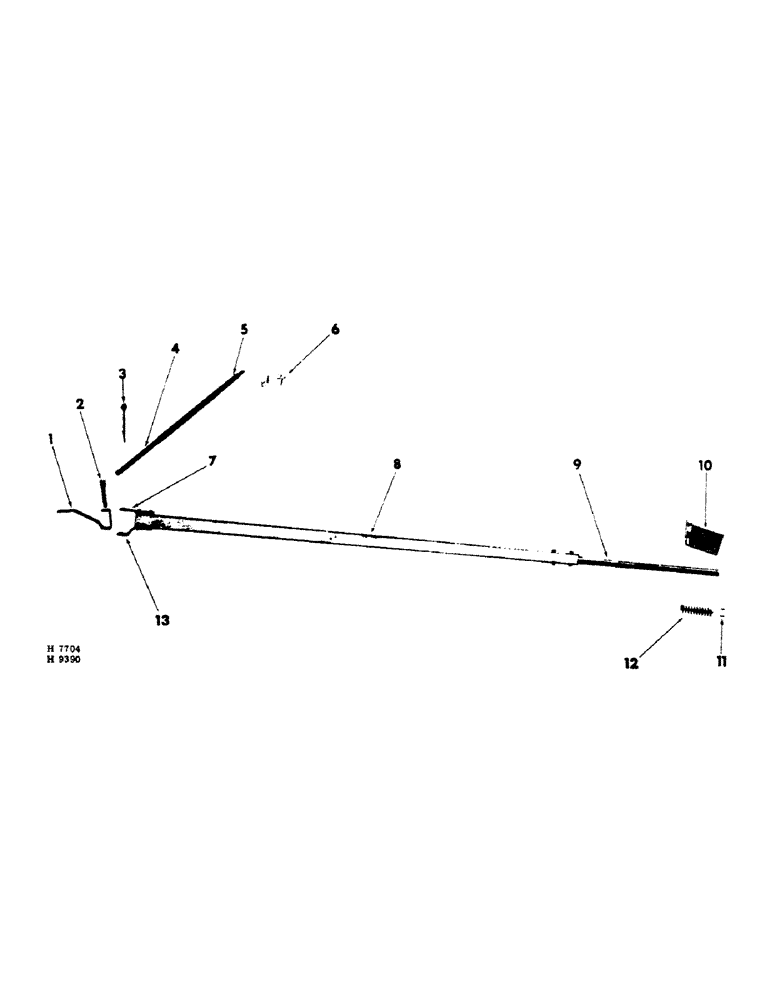

Запчасти Case IH 100 (B-39) - SPRING CUSHION HITCH, 1965 SEASON AND SINCE

1

606348R91

STRAP, hammer hitch

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

2шт.

271501

SOCKET

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

609970R91

BOLT, hitch

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" JAM NUT

2шт.

3

611157R1

EYEBOLT, rope guide

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

609972R1

PIPE, adjustable hitch

1шт.

453116R1

PIN

5/8 X 2-5/8" STD-HD-DLD PIN

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

5

609973R11

GUIDE, hitch pipe

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

1/2 X 2-1/4" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 X 4-1/4" BOLT

1шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

3шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

6

609975R1

CLAMP, pipe guide support

2шт.

C13756

SPACER

SUPPORT CLAMP SPACER

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 X 2-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

608907R1

BAR, hitch

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

1/2 X 6" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

609968R11

SECTION, hitch channel

1шт.

9

609966R1

PIPE, hitch spg

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 X 3-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

178373R1

WASHER

17/32 X 1 X 16 GA WASHER

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

609964R11

SUPPORT, hitch

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

3шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

11

609967R1

COLLAR, spg

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

5/8 X 3-1/4" STD-HD-DLD PIN

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

12

685560R1

SPRING, cushion hitch

1шт.

13

608908R1

BAR, hitch draw

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

1/2 X 6" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
