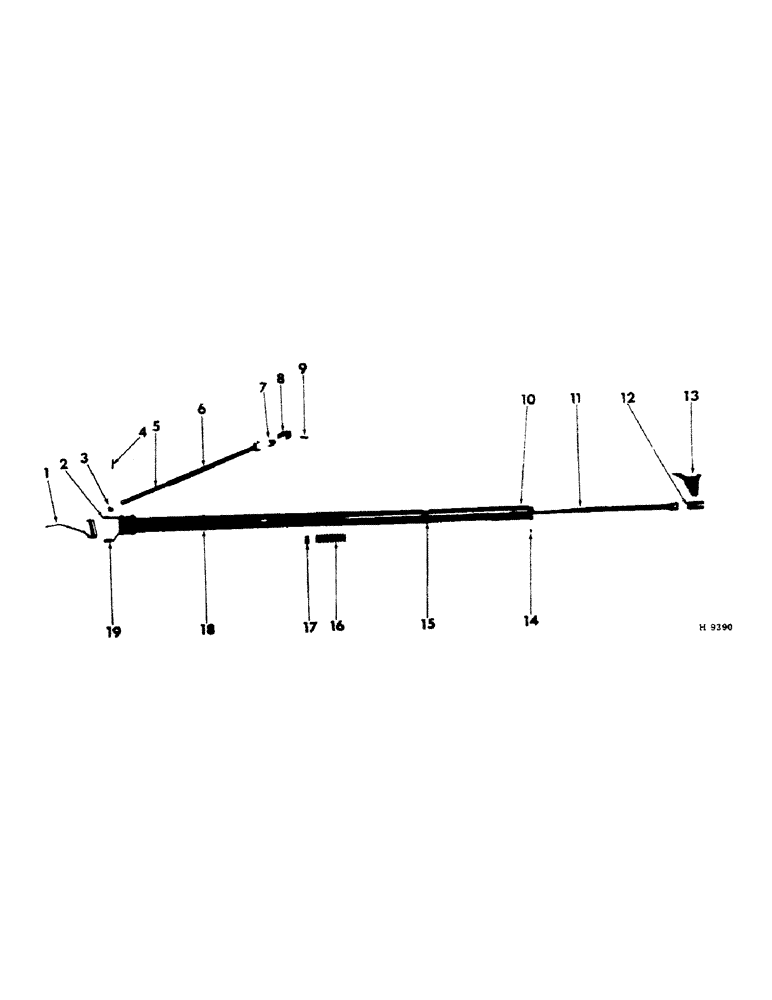

Запчасти Case IH 100 (B-38) - SPRING CUSHION HITCH, 1964 SEASON

1

606348R91

STRAP, hitch hammer

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

7/16 X 1-1/2" BOLT

2шт.

19593R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

3/4 X 8-1/2" BOLT

1шт.

NLS

NO LONGER SERVICED

7/16" NUT

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4" JAM NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

2

608907R1

BAR, hitch

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

608909R1

CHANNEL, hitch pipe

1шт.

452116R1

5/8 X 2-3/8" STD-HD-DLD PIN

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

4

6011157R1

EYEBOLT, rope guide

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

608910R1

PIPE, adjustable hitch

1шт.

6

608911R11

PIPE, hitch guide

1шт.

PG141

PIN

1/2 X 2" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

7

608913R91

YOKE, guide tube

1шт.

Q3434

PIN

3/4 X 3-1/4" STD-HD-DLD PIN

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

8

608915R1

CHANNEL, hitch anchor clevis

1шт.

Q677

PIN

1/2 X 3-3/4" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

608916R1

SPACER, hitch anchor

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 X 4" BOLT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

608904R11

BEAM, hitch

1шт.

11

608917R11

PIPE, spg

1шт.

12

S7373

YOKE, spg tube

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

5/8 X 1-3/4" STD-HD-DLD PIN

1шт.

PR146

AXLE PIN,5/8" x 2 1/2"

5/8 X 2-1/2" STD-HD-DLD PIN

1шт.

21782R1

WASHER

21/32 X 1-1/2 X 16 GA WASHER

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

13

604990R1

SUPPORT, hitch spg tube

1шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

3шт.

124580

5/8" NUT

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

14

608919R1

ROLLER, pipe

4шт.

15

Q3550

PIN

1/2 x 3-1/8" straight dld

4шт.

119204

3/16 X 3-1/2" C-PIN

2шт.

16

613657R1

SPRING, hitch

1шт.

17

608921R1

COLLAR, hitch spg

1шт.

Q1194

AXLE PIN,1/2" x 3"

1/2 X 3" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

18

608920R1

STOP, tube (1/2 x 4-5/8" std-hd-dld pin)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

19

608908R1

BAR, draw

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
