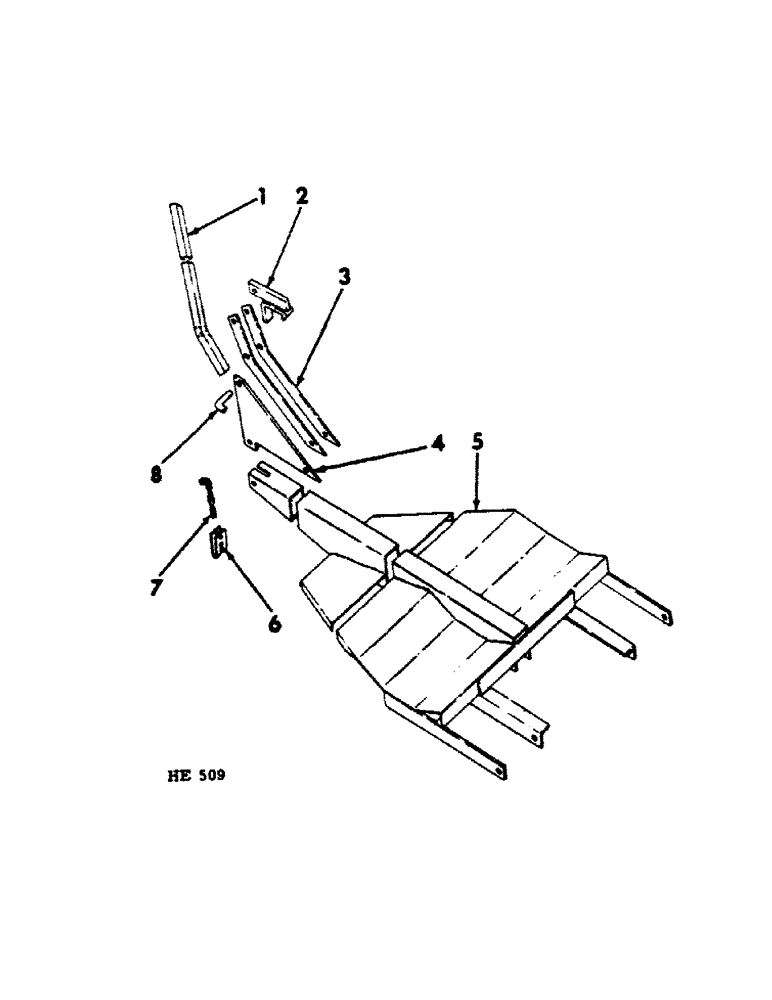

Запчасти Case IH 100 (B-36) - DRILL TRANSPORTING FRAME, SPECIAL

1

596546R1

BRACE, lift

1шт.

2

596543R91

CLAMP, drill frame

2шт.

3

596542R1

BRACE, lift linkage bracket

4шт.

5530S

PIN

5/8 X 1-5/8" STD-HD-DLD PIN

4шт.

464623R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

4

596540R11

BRACKET, lift linkage

2шт.

5

596532R91

FRAME, transport dolly

2шт.

6

N62606

CLEVIS

locking chain

2шт.

7

596547R91

CHAIN, evener bar locking

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

SB191

HEADED PIN,3/8" x 1 3/4"

3/8 X 1-3/4" STD-HD-DLD PIN

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

QUICK-ATTACHABLE C-PIN

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

600829R2

ROD

bracket locking

4шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

4шт.
