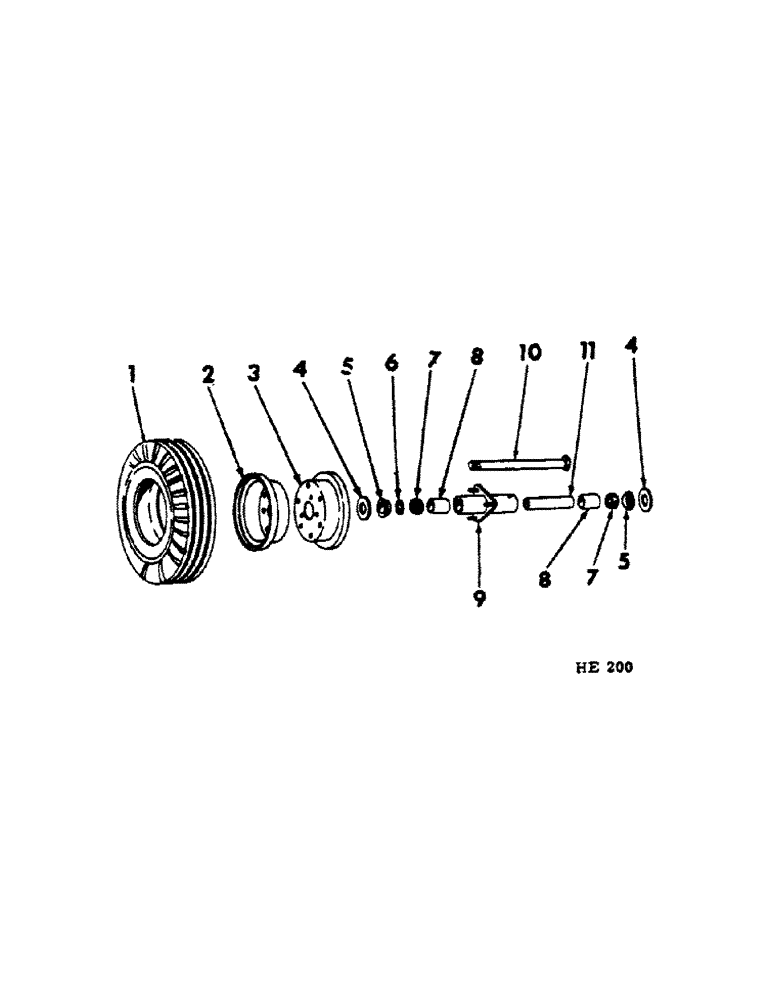

Запчасти Case IH 100 (B-36[1]) - DRILL TRANSPORTING WHEEL, SPECIAL

1

TIRE & TUBE, 5.30/4.50 6 ply industrial transport wheel

4шт.

2

596310R1

WHEEL

DISC, transport wheel inner

4шт.

3

596311R1

WHEEL

DISC, transport wheel outer

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

4

619505R1

WASHER

25/32 x 2 x 11 ga

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

5

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER, transport wheel

8шт.

6

617381R1

WASHER

transport wheel spacer

4шт.

7

561478R91

BEARING, ROLLER,1" ID x 1.375" OD x 1"

BEARING, transport wheel

8шт.

8

617382R1

SPACER

transport wheel

8шт.

9

617384R91

HUB

transport wheel (Includes 109454, fitting, 607141R1, nuts & 607140R1, studs)

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

3/8 - NF X 7/8" STUD

12шт.

607141R1

NUT

3/8" - NF SPECIAL NUT

12шт.

10

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

wheel hub 3/4 x 7-1/2"

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

11

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

wheel hub support

4шт.
