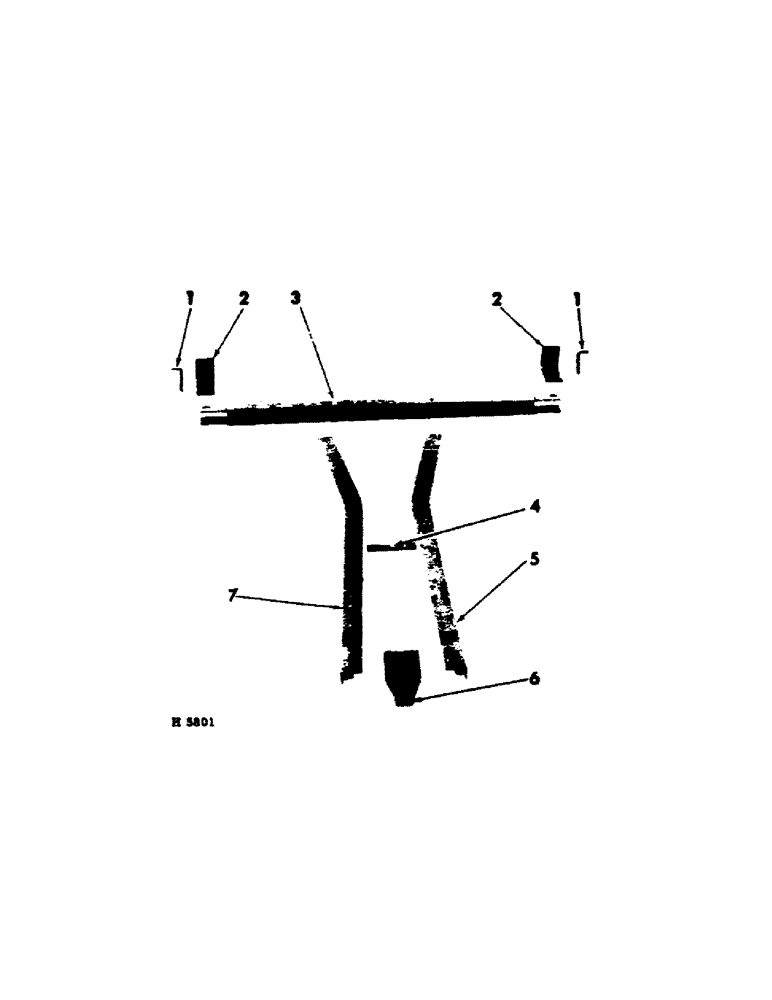

Запчасти Case IH 100 (B-35) - TWO DRILL HITCH, 10 X 6 MACHINE

1

601288R1

PIN, hitch drawbar

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

619373R1

WASHER

7/8 X 2 X 7 GA WASHER

7шт.

2

604240R1

BRACKET, drawbar

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

3

604520R91

DRAWBEAM, hitch

1шт.

4

604523R1

ANGLE, draw angle tie cross

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 X 1-1/4" BOLT

2шт.

271501

SOCKET

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

5

604521R1

ANGLE, draw LH

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 X 4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

604524R11

CLEVIS, draw

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 X 1-1/4" BOLT

4шт.

NLS

NO LONGER SERVICED

7/16" NUT

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

7

604522R1

ANGLE, draw RH

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 X 4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
