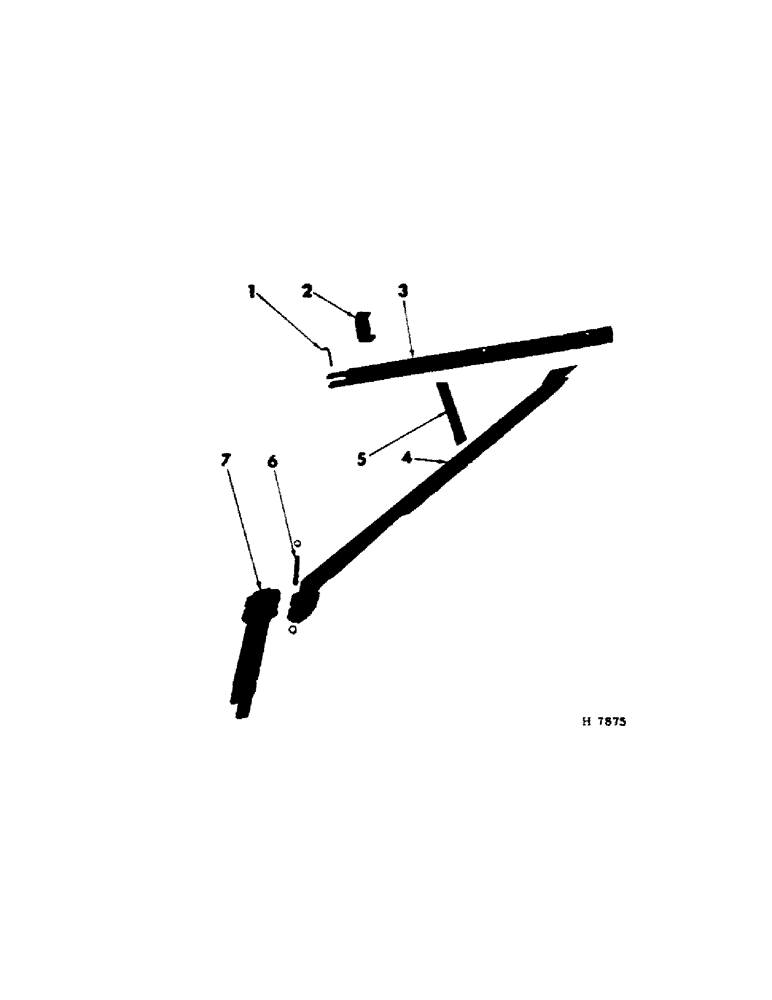

Запчасти Case IH 100 (B-35[1]) - THREE DRILL TRACTOR HITCH, 12 X 6, 14 X 6 AND 16 X 6

1

601288R1

PIN, drawbeam

3шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

3шт.

619373R1

WASHER

7/8 X 2 X 7 GA WASHER

3шт.

2

604240R1

BRACKET, drawbeam hitch

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

9шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 X 4" BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

13шт.

120384

WASHER,1/2"

LOCK, 1/2"

13шт.

3

601284R93

DRAWBEAM, 14 x 6

2шт.

3

604242R93

DRAWBEAM, 12 x 6

2шт.

3

609206R91

DRAWBEAM, 16 x 6

2шт.

4

606443R91

ARM, draw LH (Shown)

1шт.

4

606444R91

ARM

draw RH

1шт.

5

606414R1

BRACE, cross angle

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

2шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 X 4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

606448R1

PIN, hinge

2шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

4шт.

NLS

NO LONGER SERVICED

3/16 X 1-3/8" C-PIN

1шт.

7

606439R91

HINGE

drawbeam

1шт.
