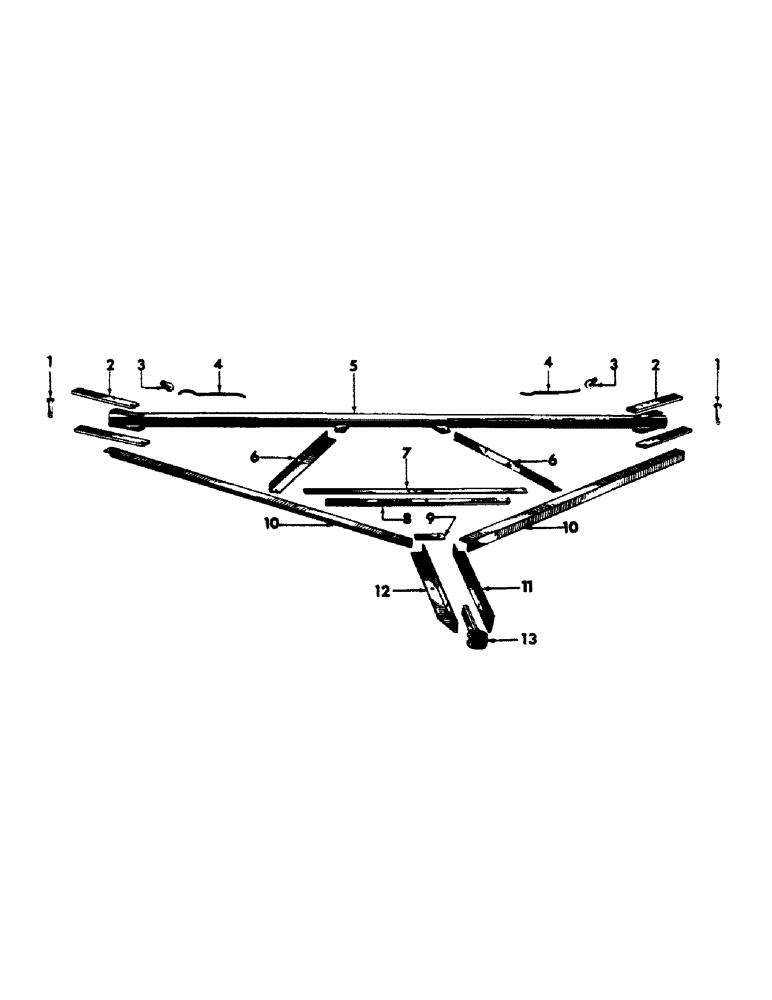

Запчасти Case IH 100 (B-34) - TWO DRILL HITCH, 24 X 6, 20 X 7 AND 24 X 7

1

Q1336

HEADED PIN,19.05mm OD x 152.4mm L

PIN, 3/4 x 6" std-hd-dld clevis (24 x 7)

2шт.

1

P13789

AXLE PIN

PIN, 3/4 x 5-1/4" std-hd-dld clevis (24 x 6 & 20 x 7)

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

2

601876R1

STRAP, hitch (24 x 6 & 20 x 7)

4шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

43323A

PULLEY

power lift trip rope

4шт.

108652

GIFTS, VACUUM FLASK

5/16 X 1-1/4" C-PIN

4шт.

4

ROPE, extension 5/16" sisal x 30 ft (Dealer to purchase locally)

1шт.

5

601879R91

DRAWBEAM, 24 x 6 & 20 x 7 hitch

1шт.

5

600908R91

DRAWBEAM, 24 x 7 hitch

1шт.

6

601863R1

ANGLE, 24 x 6 & 20 x 7 cross

2шт.

6

600905R1

ANGLE, 24 x 7 cross

2шт.

NLS

NO LONGER SERVICED

5/8 X 1-3/4" BOLT

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 X 4-1/2" BOLT

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

7

N62715

PLATE, cross

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 X 1-3/4" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

N62711

REINFORCEMENT, cross plate

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 X 1-3/4" BOLT

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 X 1" RD-HD RIVET

2шт.

9

N62718

PLATE, tie

1шт.

NLS

NO LONGER SERVICED

5/8 X 1-3/4" BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

N62707

BRACE, 24 x 7 side

2шт.

10

601877R1

BRACE, 24 x 6 & 20 x 7 side

2шт.

NLS

NO LONGER SERVICED

5/8 X 1-3/4" BOLT

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

5/8 X 6" BOLT

4шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8 X 5" BOLT (24 x 7)

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

N62706

ANGLE, hitch draw LH

1шт.

12

N62705

ANGLE, hitch draw RH

1шт.

NLS

NO LONGER SERVICED

5/8 X 1-3/4" BOLT

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

NA42030

EYE, hitch draw

1шт.

111274

1/2 X 2-1/4" RD-HD RIVET

3шт.
