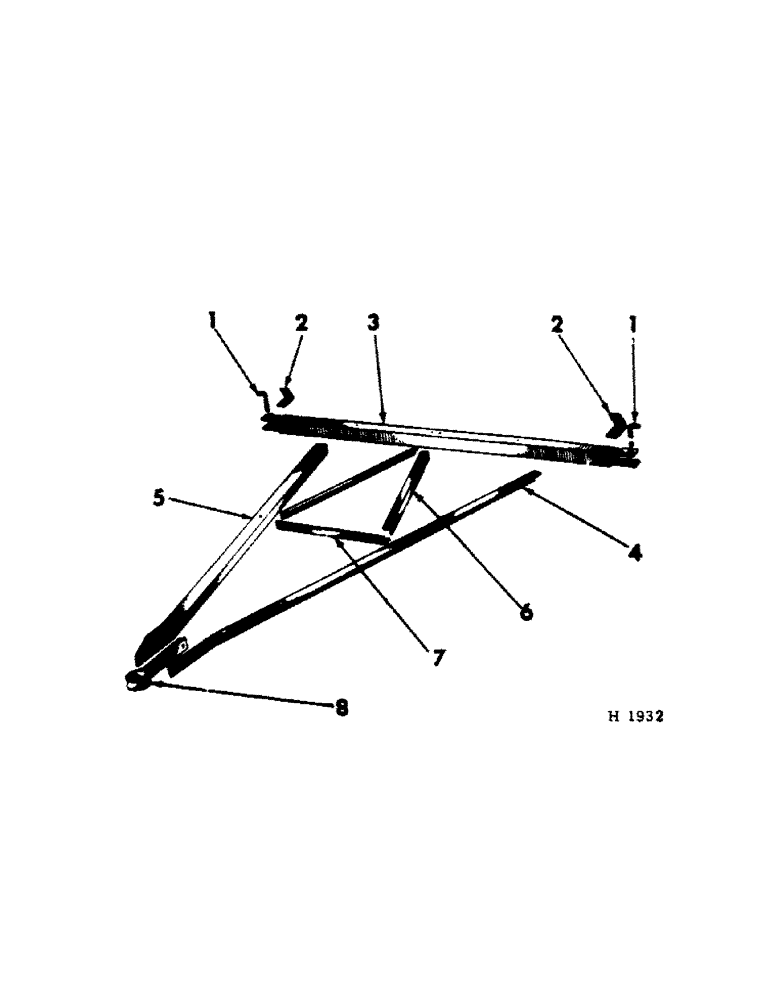

Запчасти Case IH 100 (B-33) - TWO DRILL HITCH, 1959 THRU 1960, 12 X 6 AND 14 X 6

1

601288R1

PIN, drawbar

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

619373R1

WASHER

7/8 X 2 X 7 GA WASHER

2шт.

2

604240R1

BRACKET, drawbar

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

3

604242R92

DRAWBEAM, 12 x 6 hitch

1шт.

3

601284R93

DRAWBEAM, 14 x 6 hitch

1шт.

4

604297R2

ANGLE, draw LH (12 x 6)

1шт.

4

601287R1

ANGLE, draw LH (14 x 6)

1шт.

5

604298R2

ANGLE, draw RH (12 x 6)

1шт.

5

601286R1

ANGLE, draw RH (14 x 6)

1шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1/2 X 3-3/4" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

6

604038R1

BRACE, 12 x 6 draw angle side

2шт.

6

601316R1

BRACE, 14 x 6 draw angle side

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 X 1" BOLT

1шт.

180165

BOLT,Hex, 7/16" - 14 x 4", Gr 5

7/16 X 4" BOLT

1шт.

271501

SOCKET

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

604299R2

ANGLE, 12 x 6 hitch cross

1шт.

7

601285R1

ANGLE, 14 x 6 hitch cross

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 X 1" BOLT

2шт.

NLS

NO LONGER SERVICED

7/16" NUT

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

8

NA42030

EYE, draw hitch

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.
