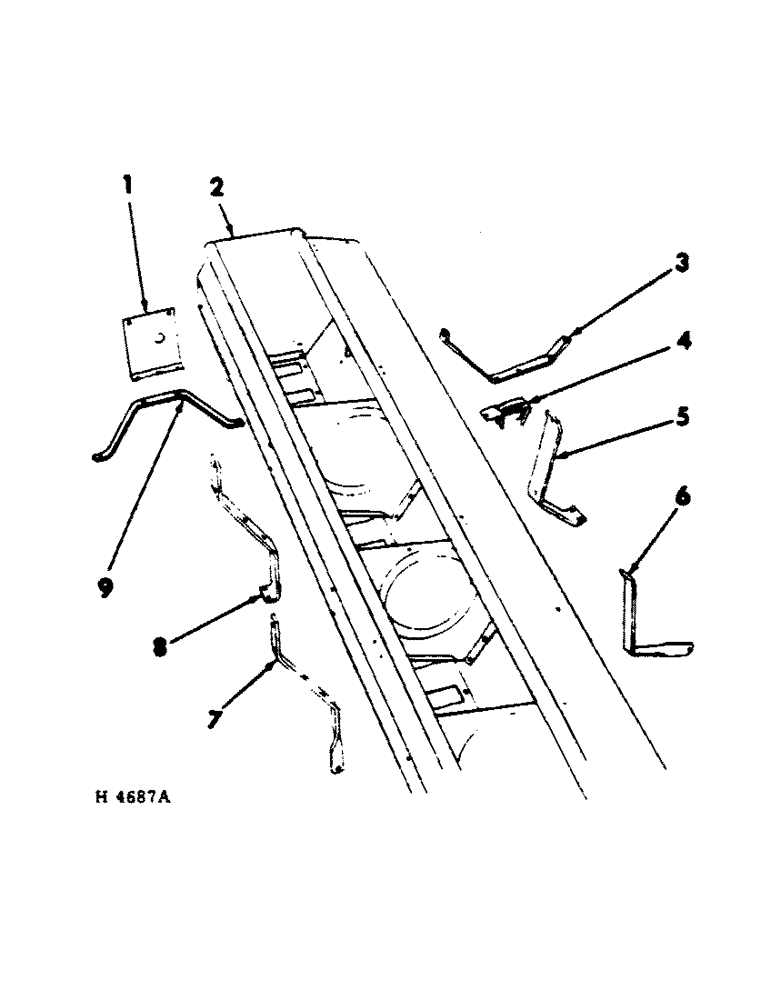

Запчасти Case IH 100 (B-02) - HOPPER UNIT

1

603975R1

BRACKET, hopper support RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

609173R91

HOPPER, 16 x 6 w/double rockshaft grain

1шт.

2

594756R91

HOPPER, 16 x 6 w/single rockshaft grain

1шт.

2

604487R91

HOPPER, 10 x 6 grain

1шт.

2

604056R91

HOPPER, 12 x 6 grain

1шт.

2

604057R91

HOPPER, 14 x 6 grain

1шт.

2

604058R92

HOPPER, 24 x 6 grain

1шт.

2

604059R92

HOPPER, 20 x 7 grain

1шт.

2

604060R92

HOPPER, 24 x 7 grain

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 X 5/8" BOLT

6шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8" X 3/4 CRG BOLT

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

8шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

24шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

3

603401R1

BRACE, hopper inner (1959-1960)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

603294R91

BRACKET, land measure worm

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4" BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

603959R1

BRACE, hopper front (1 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (2 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

603957R1

BRACE, hopper front (24 x 6, 20 x 7 & 24 x 7)

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 X 7/8" BOLT

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

603958R1

BRACE, hopper rear (1959 - 1960)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

603960R1

BRACE, hopper rear (1 used 10 x 6, 12 x 6, 14 x 6 & 16 x 6) (2 used 24 x 6, 20 x 7 & 24 x 7)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 X 1-1/2" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

605973R1

BRACE, hopper end (1960 & since)

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
