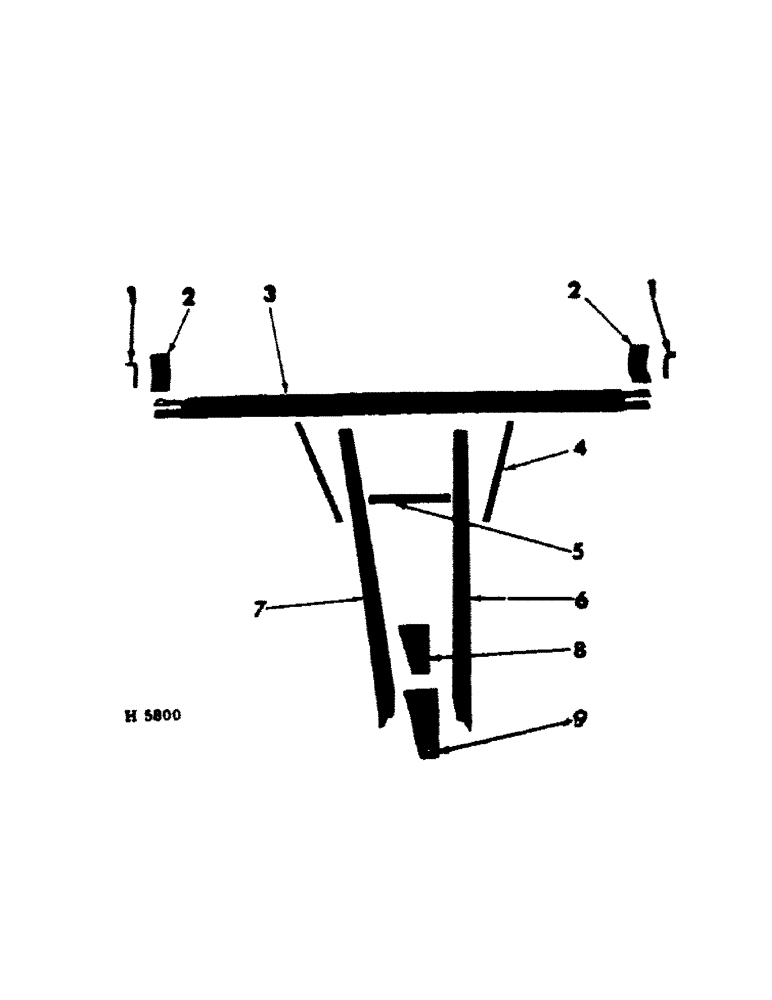

Запчасти Case IH 100 (B-33[1]) - TWO DRILL HITCH, 1960 AND SINCE, 12 X 6, 16 X 6 AND 14 X 6

1

601288R1

PIN, drawbar

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

619373R1

WASHER

7/8 X 2 X 7 GA WASHER

2шт.

2

604240R1

BRACKET, drawbar

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

1/2 X 1-1/4" BOLT

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

3

604242R93

DRAWBEAM, 12 x 6 hitch

1шт.

3

601284R93

DRAWBEAM, 14 x 6 hitch

1шт.

3

609206R91

DRAWBEAM, 16 x 6 hitch

1шт.

4

605959R1

BRACE, side

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2" X 4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

5

605959R1

ANGLE, cross

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

605960R1

ANGLE, draw LH

1шт.

7

605961R1

ANGLE

draw RH

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 X 4" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

605957R1

STRAP, clevis upper

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

605958R1

STRAP, clevis lower

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 X 2" BOLT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
