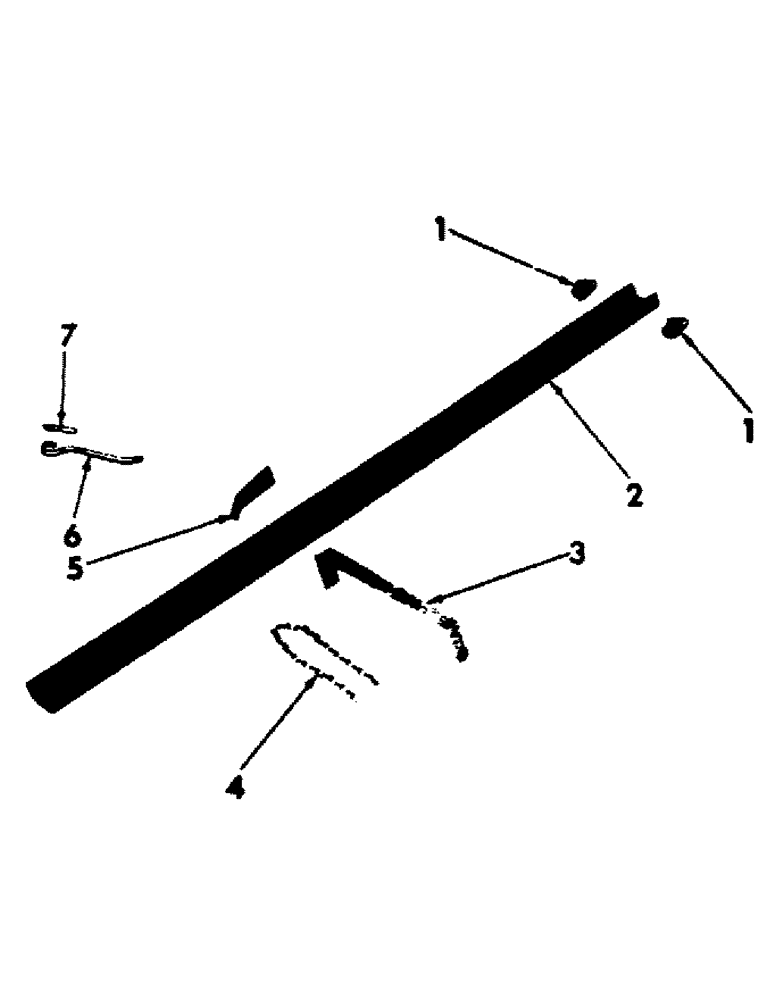

Запчасти Case IH 100 (B-32) - MULTIPLE DRILL DISK MARKER TRANSPORTING

1

43323A

PULLEY

balance & lift rope

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 X 1" RD-HD RIVET

2шт.

13065R1

3/8 X 1" C-PIN

2шт.

2

592271R1

CHANNEL, disk marker

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 X 1-1/4" BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

7/16" NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

592270R1

SUPPORT, marker channel

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

592273R91

CHAIN (AG)

CHAIN, transport

1шт.

120322R1

CHAIN RETAINING PIN

1шт.

5

592275R1

SPACER, fertilizer hopper LH support

1шт.

5

592276R1

SPACER, fertilizer hopper RH support (Shown)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

615712R91

GUIDE

marker rope (Includes 106883, rivet & FA4916, spring)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

1шт.

Q1581

13/32 X 1-1/2" SQ-HOLE X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

FA4916

SPRING

rope guide locking

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.
