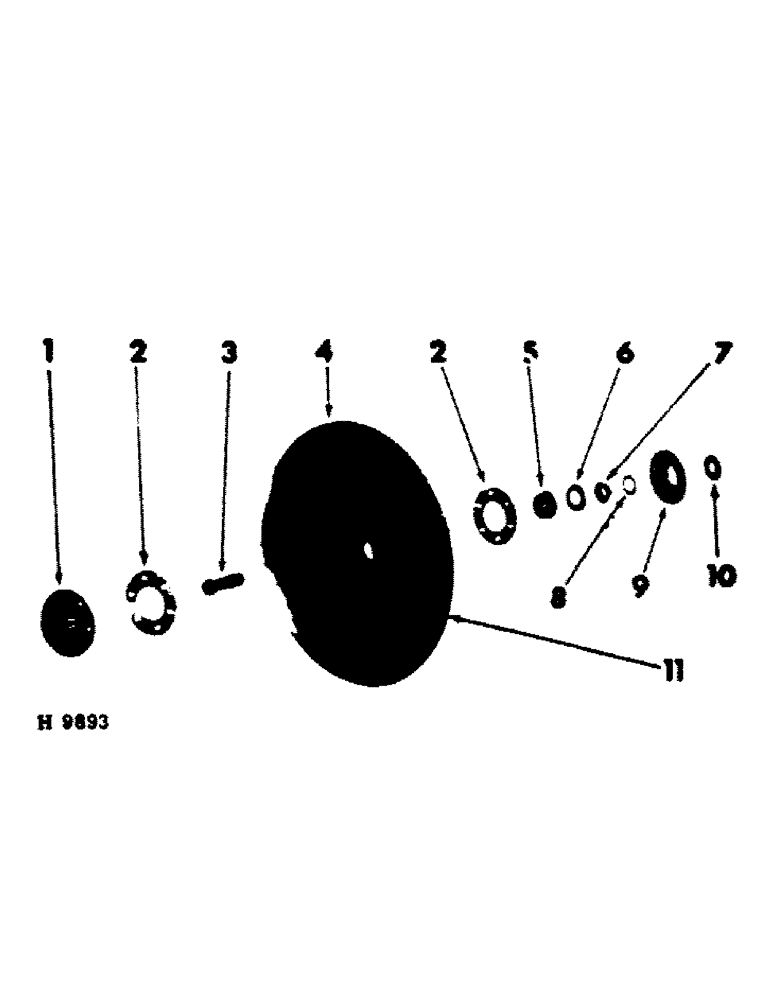

Запчасти Case IH 100 (B-30) - MULITPLE DISK MARKER SEALED BEARING DISK

1

602990R1

CAP

disk blade

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" B-HD RIVET

6шт.

2

602992R1

GASKET

blade paper

2шт.

3

602987R1

BOLT

BOLT, disk blade special

1шт.

658182R1

SPECIAL BLADE BOLT SPACER

1шт.

124634

NUT,9/16"-18, G5

5/8" - NF NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

603005R91

DISC

DISK ASSEMBLY, blade & brg, Composed of

1шт.

603004R1

BLADE

1шт.

602987R1

BOLT

BOLT

1шт.

602996R91

BEARING

1шт.

602990R1

CAP

1шт.

602994R1

FLANGE

1шт.

602992R1

GASKET

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-110

1шт.

608989R1

RETAINER

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

6шт.

5

602996R91

BEARING

disk blade

1шт.

6

602994R1

FLANGE

blade seal

1шт.

7

602988R1

SPACER

seal retainer

1шт.

8

602993R1

WASHER

SEAL, blade dirt

1шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

blade brg

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 X 1/2" B-HD RIVET

6шт.

10

575811R1

WASHER

23/32 x 1-1/4 x 16 ga

1шт.

11

603004R1

BLADE

marker disk

1шт.
