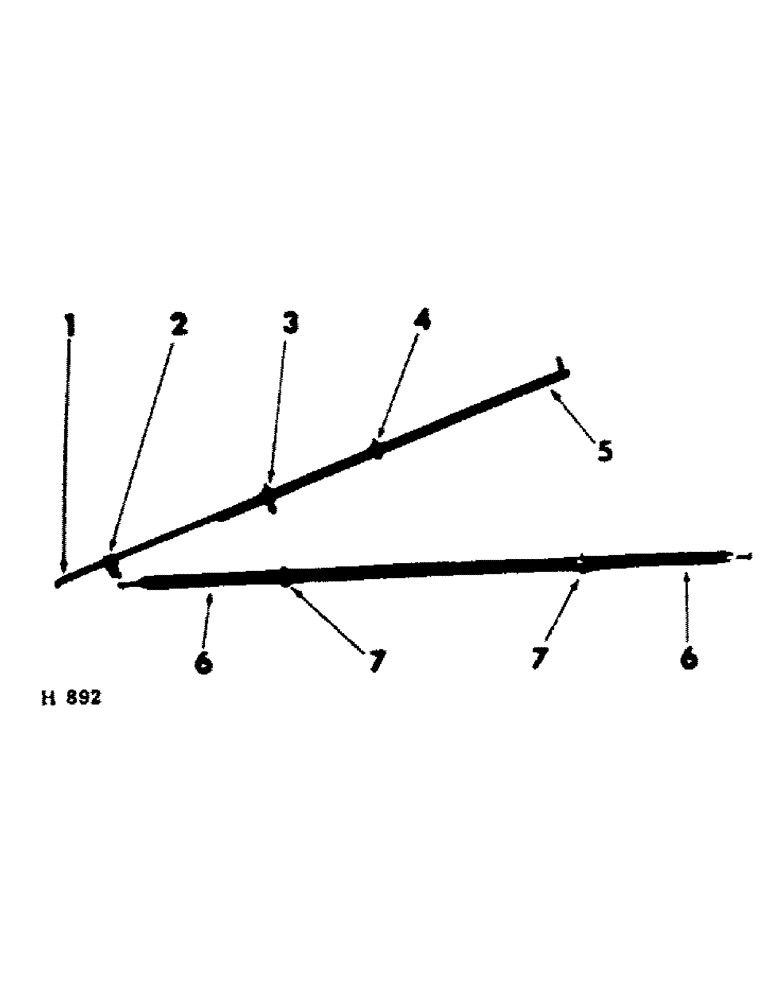

Запчасти Case IH 100 (B-30[1]) - MULTIPLE DRILL DISK MARKER ANGLES

1

592260R1

ROD, disk marker

1шт.

2

600534R1

CLAMP, front marker angle

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 X 1-3/4" CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

3

600530R1

CLAMP

outer

1шт.

4

600529R1

CLAMP, inner

1шт.

19579R1

SET SCREW

7/16 X 7/8" CUP-PT SET SCREW

2шт.

5

600537R91

ANGLE, marker rear RH (Shown)

1шт.

5

600538R91

ANGLE, marker rear LH

1шт.

21715R1

WASHER

29/32 X 1-3/4 X 11 GA WASHER

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

600536R1

ANGLE, marker front

2шт.

7

457A

CLAMP, marker front angle

2шт.

184366

SUPPORT

7/16 X 1-1/4" CUP-PT SET SCREW

2шт.
