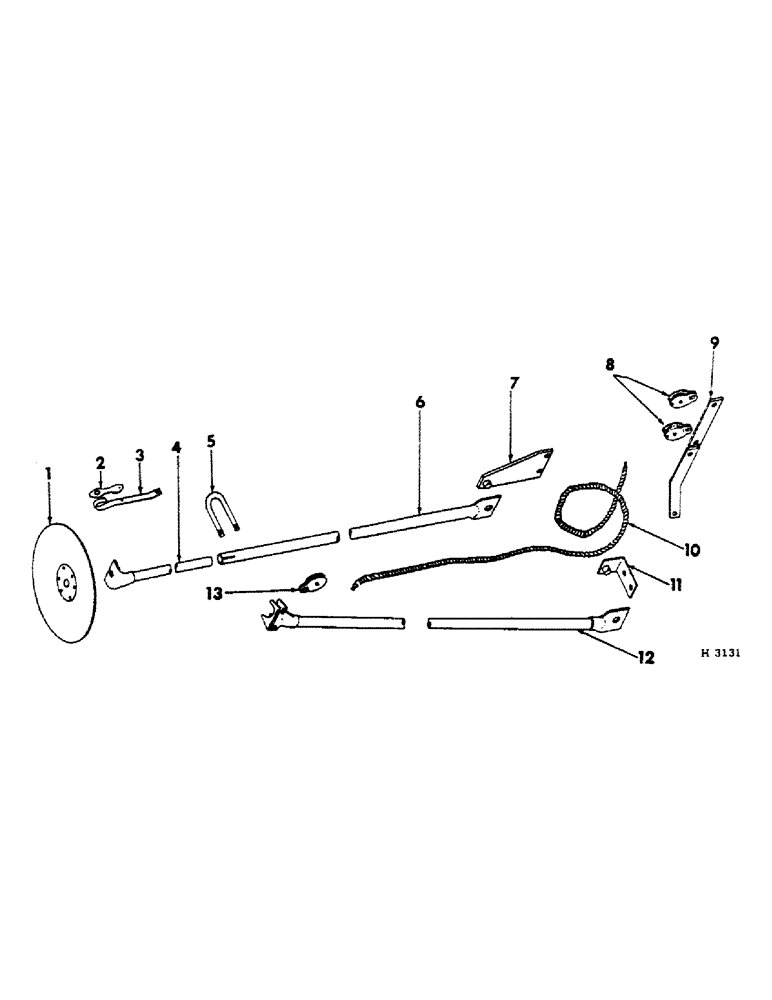

Запчасти Case IH 100 (B-29) - MULTIPLE DRILL DISK MARKER ATTACHING PARTS

1

DISK, marker blade (Refer to "Multiple Drill Marker Blade")

1шт.

2

FA4916

SPRING

locking

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

3

615712R91

GUIDE

marker rope LH (Includes 106883, rivet & FA4916, spring)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 X 3/4" CRG BOLT

1шт.

Q1581

13/32 SQ-HOLE X 1-1/2 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

596516R11

TUBE,1767.8, 33 mm Length

disk marker outer

1шт.

5

596521R1

U-BOLT

disk marker brace tube

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

596518R11

TUBE,73.95, 0.95" Length

disk marker inner

1шт.

7

596522R91

BRACKET, inner tube mounting LH

1шт.

7

596523R91

BRACKET, inner tube mounting LH

1шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

1шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 X 1-1/4" BOLT

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 X 1-1/2" BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

43323A

PULLEY

balance rope guide

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 X 1" RD-HD RIVET

2шт.

13065R1

3/8 X 1" C-PIN

2шт.

9

608368R1

STRAP, pulley post LH

1шт.

9

608369R1

STRAP, pulley post RH (Shown)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

ROPE, 3/8" sisal x 42 ft lift & balance (Dealer to purchase locally)

1шт.

11

596527R91

BRACKET, marker brace

1шт.

520175R1

CLIP

QUICK-ATTACHABLE C-PIN

1шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

271501

SOCKET

7/16" NUT

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

3/8 X 1-1/4" CRG BOLT

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

7/16 X 1/1/4" CRG BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

12

596520R11

TUBE, disk marker brace

1шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

13

43323A

PULLEY

lift rope guide

1шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 X 1" RD-HD RIVET

1шт.
