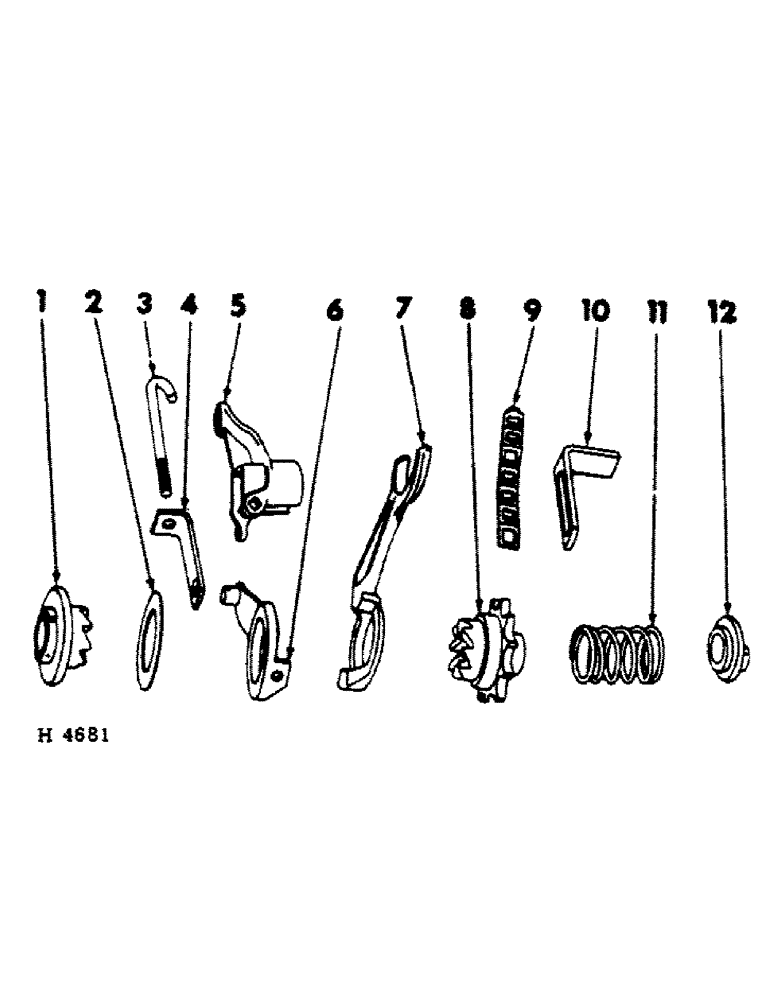

Запчасти Case IH 100 (B-27) - GRASS DRIVE PARTS

1

603116R1

COLLAR CLAMP

COLLAR, 8T grass drive clutch

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

2

603265R1

WASHER

2 x 3-1/8 x 14 ga

1шт.

3

603151R1

ROD

clutch shifter

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

603181R1

SUPPORT

EXTENSION, clutch rod

1шт.

5

603132R1

ARMATURE

ARM, clutch shifter rod rockshaft

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

5/16 X 2-1/4" CRG BOLT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

603133R1

CAM

drive clutch throw-out

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1/8" - 65 DEGREE ELBOW LUB-FITTING

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

7

603131R1

PLATE ASSY.

PLATE, clutch throw-out fixed

1шт.

8

604268R1

SPROCKET ASSY.

SPROCKET, 11T drive

1шт.

9

CHAIN, grass drive (Order 1-CM-25 malleable 10 ft chain & reduce to 47 links)

1шт.

10

601791R1

SUPPORT

ARM, chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

New part number

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

35AC

SPRING

grass clutch drive

1шт.

12

603117R1

COLLAR CLAMP

COLLAR, clutch grass drive spg

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.
