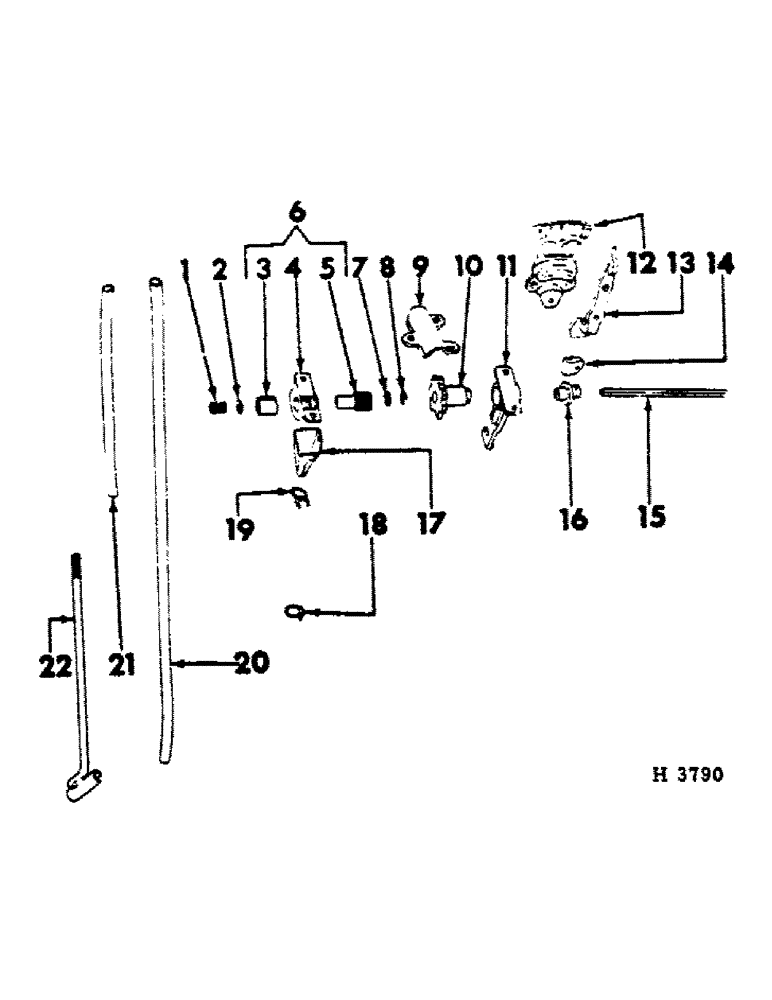

Запчасти Case IH 100 (B-26) - GRASS SEED FEEDSHAFT

1

N32176

SPRING

feed cup (1 per feed cup)

1шт.

2

615022R1

WASHER, 11/32 sq-hole x 3/4 x 16 ga feed cup

1шт.

3

600923R2

BLOCK

feed cup shut-off (1 per feed cup)

1шт.

4

615750R92

SUPPORT ASSY.

CUP, grass feed

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

601463R1

FINGER ASSY.

ROLL, grass feed cup (1 per feed cup)

1шт.

6

600924R92

CUP ASSY.

CUP, grass feed (Includes 600923R2, block; 615750R92, cup & 601463R1, roll)

1шт.

120328

1/4 X 1/2" SLT-RD-HD SCREW (2 per feed cup)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per screw) 1/4"

1шт.

7

615023R1

SQ HOLE WASHER

11/32 sq-hole x 3/4 x 26 ga

1шт.

8

N32109

WASHER

sltd hole

1шт.

9

N1470

COVER

driven sprocket

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2" SLT-RD-HD SCREW

1шт.

113958

CAPSCREW,1" - 8 x 68.53mm

1/4 X 7/8" SLT-RD-HD SCREW

2шт.

109084

NUT,1/4"-20, G5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

3шт.

10

NA1475

DRIVE SPROCKET

SPROCKET, 7T driven

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

11

N1474

BRACKET

HANGER, driven sprocket

1шт.

113958

CAPSCREW,1" - 8 x 68.53mm

1/4 X 7/8" SLT-RD-HD SCREW

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

2шт.

12

603698R1

SECTOR

PLATE, feed indicator

1шт.

110531

SCREW

NO. 10 X 1/2" SLT-FT-HD SCREW

3шт.

110633

NUT,#10-24

3шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

13

N1468

INDICATOR

LEVER, indicator

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

1шт.

86627130

WING NUT,1/4"-20

1/4" WING NUT

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 3/4" RD-HD RIVET

1шт.

14

F902

BLOCK

feedshaft shifter

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 X 3/4" RD-HD RIVET

1шт.

15

604506R1

SHAFT, 10 x 6 grass feed

1шт.

15

604269R1

SHAFT, 12 x 6 grass feed

1шт.

15

604270R1

SHAFT, 14 x 6 grass feed

1шт.

15

609209R1

SHAFT, 16 x 6 grass feed

1шт.

15

604271R1

SHAFT, 24 x 6 grass feed

1шт.

15

604272R1

SHAFT, 20 x 7 grass feed

1шт.

15

604273R1

SHAFT, 24 x 7 grass feed LH

1шт.

15

604274R1

SHAFT, 24 x 7 grass feed RH

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 2 used per feed cup 1/8" x 3/4"

1шт.

16

FA394

SLEEVE

feedshaft

1шт.

104056

RIVET

1/8 X 7/8" RD-HD RIVET

1шт.

17

603817R1

TUBE

TOP, grass seed tube (1 per tube)

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , 1 per tube top 1/8" x 1 3/4"

1шт.

18

603882R1

HOOK

tube lower (1 per tube)

1шт.

19

603699R2

CLAMP

tube upper(1 per tube)

1шт.

20

603724R1

TUBE, band seeding (1 used per feed cup)

1шт.

21

603881R1

TUBE

broadcast seeding

1шт.

22

605088R11

HOLDER

band seeding tube

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
