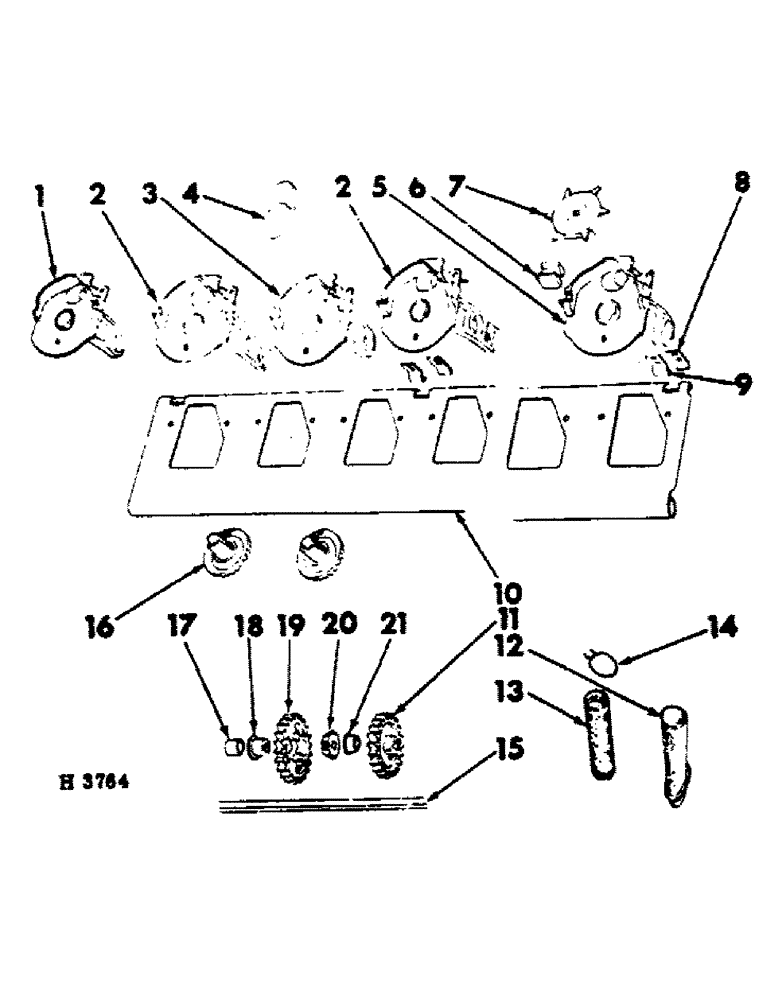

Запчасти Case IH 100 (B-24) - FERTILIZER FEED SHAFT

1

603451R1

PLATE

bottom end LH

1шт.

1

609202R1

PLATE W/HANGER, bottom end LH (16 x 6 w/double rockshaft)

1шт.

180018

CONNECTING LINK

1/4 X 5/8" BOLT

2шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

2

603454R1

PLATE

W/HANGER, bottom intermediate

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" BOLT

2шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

3

604491R1

PLATE, intermediate (6 used 10 x 6)

1шт.

3

603453R1

PLATE

intermediate (8 used 12 x 6; 10 used 14 x 6; 9 used 16 x 6 w/double rockshaft-12 used w/single rockshaft; 16 used 24 x 6 & 24 x 7; 12 used 20 x 7)

1шт.

108018

1/4 X 5/8" BOLT

2шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

603593R1

BLOCK

SHUT-OFF, fertilizer feed (Special) (One used per feed)

1шт.

5

603452R1

PLATE

bottom end RH

1шт.

180018

CONNECTING LINK

1/4 X 5/8" BOLT

2шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

6

603457R1

SPACER

7" bottom plate (10 used 20 x 7 & 12 used 24 x 7)

1шт.

6

604130R1

PLATE

SPACER, 7" bottom plate (8 used 20 x 7 & 10 used 24 x 7)

1шт.

7

602554R11

DRIVE SPROCKET

WHEEL, start feed (Includes N62414, pin)

1шт.

N62414

PIN,3.96mm OD x 28mm L

FEED WHEEL SHEAR PIN

1шт.

8

604403R1

CLAMP

STOP, front hinge (4 used on 10 x 6 & 12 x 6) (5 used on 14 x 6) (6 used on 16 x 6) (8 used on 24 x 6 & 20 x 7) (10 used on 24 x 7)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

9

603517R1

HINGE, drop bottom (1959)

1шт.

9

604404R1

CLAMP

HINGE, drop bottom (1960 & since) (4 used on 10 x 6 & 12 x 6) (5 used on 14 x 6) (6 used on 16 x 6) (8 used on 24 x 6 & 20 x 7) (10 used on 24 x 7)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

NOTE: For service of drop bottom less hinge rod, order the new bottom of applicable size, plus the necessary quantity of reference no.'s 8 & 9.

1шт.

10

604500R11

BOTTOM, 10 x 6 drop

1шт.

10

604185R11

BOTTOM, 12 x 6 drop

1шт.

10

604186R11

BOTTOM, 14 x 6 drop

1шт.

10

594768R11

BOTTOM, 16 x 6 w/single rockshaft

1шт.

10

609186R11

BOTTOM, 16 x 6 w/double rockshaft LH

1шт.

10

604187R11

BOTTOM, 24 x 6 drop LH

1шт.

10

604189R11

BOTTOM, 20 x 7 drop LH

1шт.

10

604191R11

BOTTOM, 24 x 7 drop LH

1шт.

10

609187R11

BOTTOM, 16 x 7 w/double rockshaft RH

1шт.

10

604188R11

BOTTOM, 24 x 6 drop RH

1шт.

10

604190R11

BOTTOM, 20 x 7 drop RH

1шт.

10

604192R11

BOTTOM, 24 x 7 drop RH

1шт.

11

603465R2

GEAR

20T feedshaft driven

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 X 3/8" SOC-HD CUP-PT SET SCREW

1шт.

12

603572R2

TUBE,1.812" ID, 1.25" OD, 10.25" Length

combined delivery (1 used per feed)

1шт.

13

603588R3

TUBE,1.25" ID, 1.687" OD, 51, 3" Length

separate delivery (1 used per feed)

1шт.

14

603591R1

SPRING

tube upper

1шт.

15

NOTE: For service of feedshafts, order 1 - 816228C1 and cut to required length.

1шт.

15

FEEDSHAFT, 10 x 6 - 53-5/16"

1шт.

15

FEEDSHAFT, 12 x 6 - 65-5/16"

1шт.

15

FEEDSHAFT, 14 x 6 - 77-5/16"

1шт.

15

FEEDSHAFT, 16 x 9 - 89-5/16" single rockshaft

1шт.

15

FEEDSHAFT, 16 x 6 LH - 42-9/16" double rockshaft

1шт.

15

FEEDSHAFT, 16 x 6 RH - 42-7/8" double rockshaft

1шт.

15

FEEDSHAFT, 24 x 6 LH - 66-9/16"

1шт.

15

FEEDSHAFT, 24 x 6 RH - 66-7/8"

1шт.

15

FEEDSHAFT, 20 x 7 - 63-23/32"

1шт.

15

FEEDSHAFT, 24 x 7 - 77-23/32"

1шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 X 7/8" SQ-END STRAIGHT PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

16

F282C

GEAR

feedshaft bevel

1шт.

17

C13756

SPACER

20 x 7 & 24 x 7 feedshaft

2шт.

18

603461R1

TRUNNION

spur gear

1шт.

N11791

WASHER

TRUNNION WASHER

1шт.

16

603466R1

GEAR

10T & 22T spur

1шт.

20

603463R1

GEAR

PINION, 12T bevel (1 used per feed)

1шт.

21

603462R1

TRUNNION

bevel pinion (1 used per feed)

1шт.
