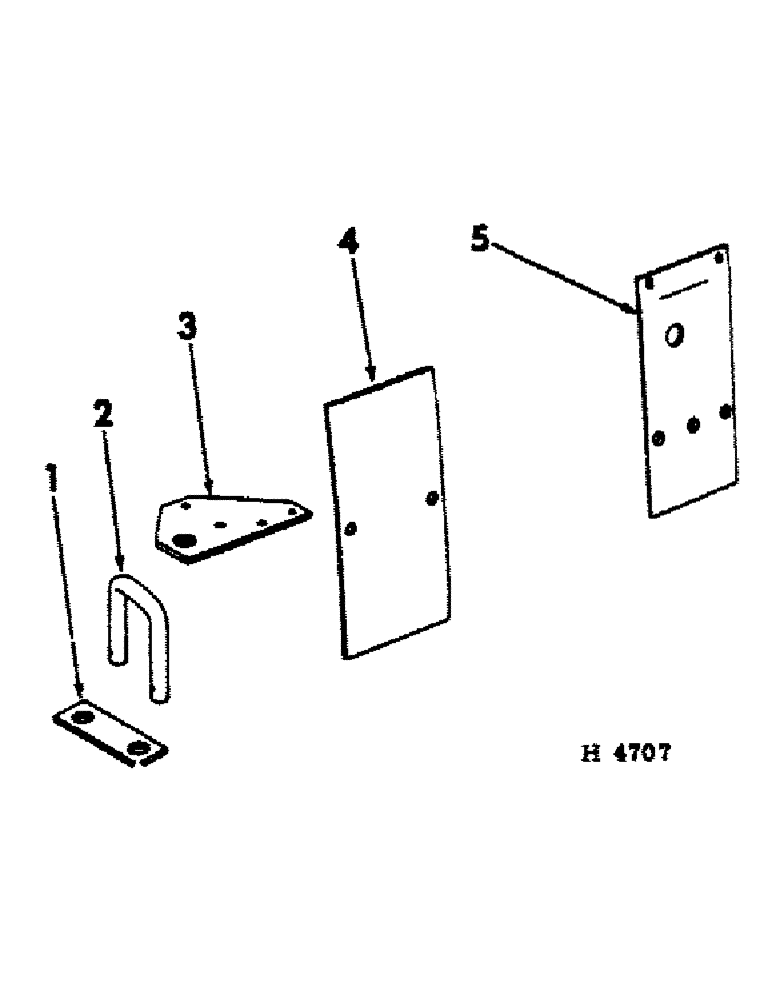

Запчасти Case IH 100 (B-23) - BUMPER AND CONNECTING PLATES, FOR MULTIPLE ENDWISE HITCHING

1

N62730

STRAP, connecting link

1шт.

2

N62689

ROD

LINK, machine connecting

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

3

604261R91

PLATE, connecting LH

1шт.

3

604262R91

PLATE, connecting RH (Shown)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

6шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 X 1-3/4" BOLT

2шт.

615052R1

WASHER

7/16 X 1-1/4 X 11 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

NA62723

PLATE

end rail bumper

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 X 1" NO. 3 PLOW BOLT

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

604259R1

PLATE, end bumper LH

1шт.

5

604250R1

PLATE, end bumper RH (Shown)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8" x 1" crg bolt

4шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 X 1" NO. 3 PLOW BOLT

6шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.
