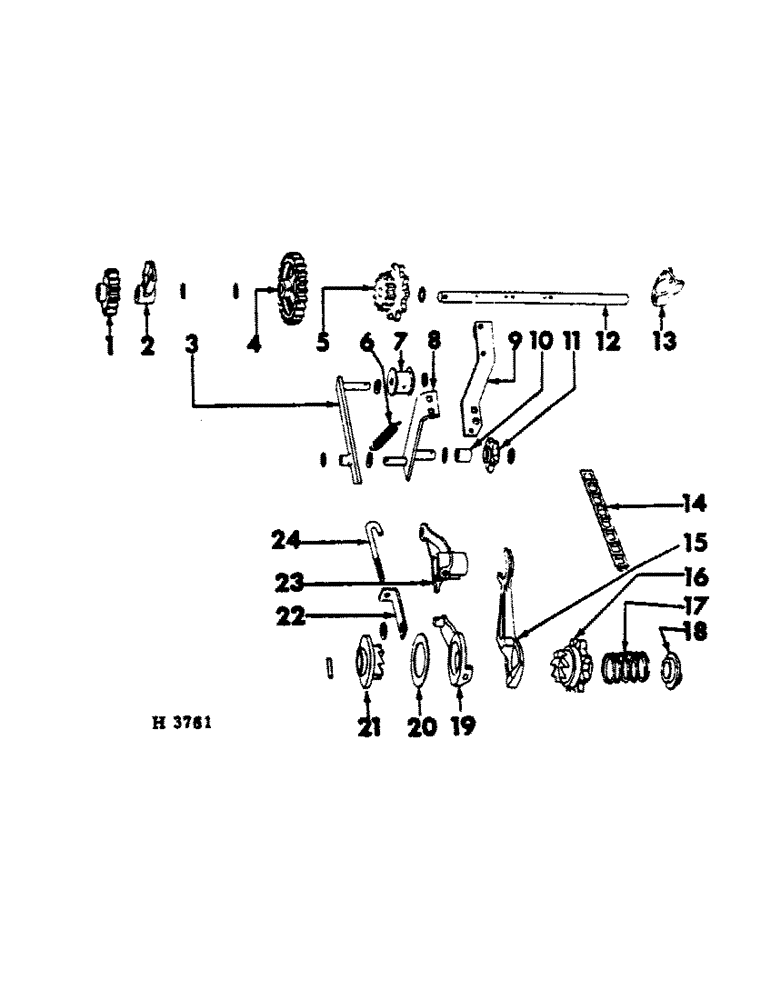

Запчасти Case IH 100 (B-21) - FERTILIZER DRIVE PARTS

1

603464R1

GEAR

14T drive

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

2

603468R1

BRACKET

BEARING, jackshaft

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8" - 90 DEGREE ELBOW LUB-FITTING

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

3/8 X 1-1/4" NO. 3 PLOW BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

603485R11

ARM, chain tightener

1шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

603460R1

GEAR

24T jackshaft spur

1шт.

U5348

PIN

1/4 X 1-1/2" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

603467R1

SPROCKET ASSY.

SPROCKET, 10T & 12T driven

1шт.

U5348

PIN

1/4 X 1-1/2" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

4A

SPRING

chain tightener

1шт.

103418

SWITCH,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

7

3240A

ROLLER

chain tightener

1шт.

8

603486R21

BRACKET, chain tightener

1шт.

558809R1

3/8 X 3/4" CRG BOLT

2шт.

178374R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

1шт.

350515R1

WASHER

21/32 X 1 X 16 GA WASHER

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

604193R11

REINFORCEMENT

SUPPORT, chain tightener

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4" BOLT

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

3/8 X 1-1/4" CRG BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

603369R1

BUSHING

chain tightener sprocket

1шт.

11

603450R1

DRIVE SPROCKET

SPROCKET, 5T chain tightener

1шт.

12

604137R1

JACKSHAFT, LH (10 x 6, 12 x 6, 14 x 6, 16 x 6 & 24 x 6)

1шт.

12

604139R1

JACKSHAFT, LH (20 x 7 & 24 x 7)

1шт.

12

604138R1

JACKSHAFT, RH (16 x 6 w/double rockshaft & 24 x 6)

1шт.

12

604140R1

JACKSHAFT, RH (20 x 7 & 24 x 7)

1шт.

U5348

PIN

1/4" X 1-1/2" STD-HD-DLD PIN

1шт.

21753R1

WASHER

25/32 X 1-1/2 X 16 GA WASHER

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

13

604131R1

BEARING ASSY

jackshaft

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8" - 90 DEGREE ELBOW LUB-FITTING

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

14

CHAIN, fertilizer drive (For service order 1 - CS-32 steel 10 ft chain & reduce to 56 links)

1шт.

15

603131R1

PLATE ASSY.

PLATE, clutch throw-out

1шт.

16

603115R1

DRIVE SPROCKET

SPROCKET, 8T drive

1шт.

17

35AC

SPRING

drive clutch

1шт.

18

603117R1

COLLAR CLAMP

COLLAR, drive clutch spg

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

19

603133R1

CAM

drive clutch throw-out

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

1/8" - 65 DEGREE ELBOW LUB-FITTING

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

20

603265R1

WASHER

2 x 3-1/8 x 14 ga

1шт.

21

603116R1

COLLAR CLAMP

COLLAR, 8T drive clutch

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

22

603181R1

SUPPORT

EXTENSION, drive clutch rod

1шт.

23

603132R1

ARMATURE

ARM, clutch rod shifter

1шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

5/16 X 2-1/4" CRG BOLT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

24

603151R1

ROD

clutch shifter

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
