(B-19) - POWER LIFT ADJUSTING CRANK, SPECIAL, 10 X 6, 12 X 6, 14 X 6 AND 16 X 6 WITH SINGLE ROCKSHAFT

Запчасти Case IH 100 (B-19) - POWER LIFT ADJUSTING CRANK, SPECIAL, 10 X 6, 12 X 6, 14 X 6 AND 16 X 6 WITH SINGLE ROCKSHAFT

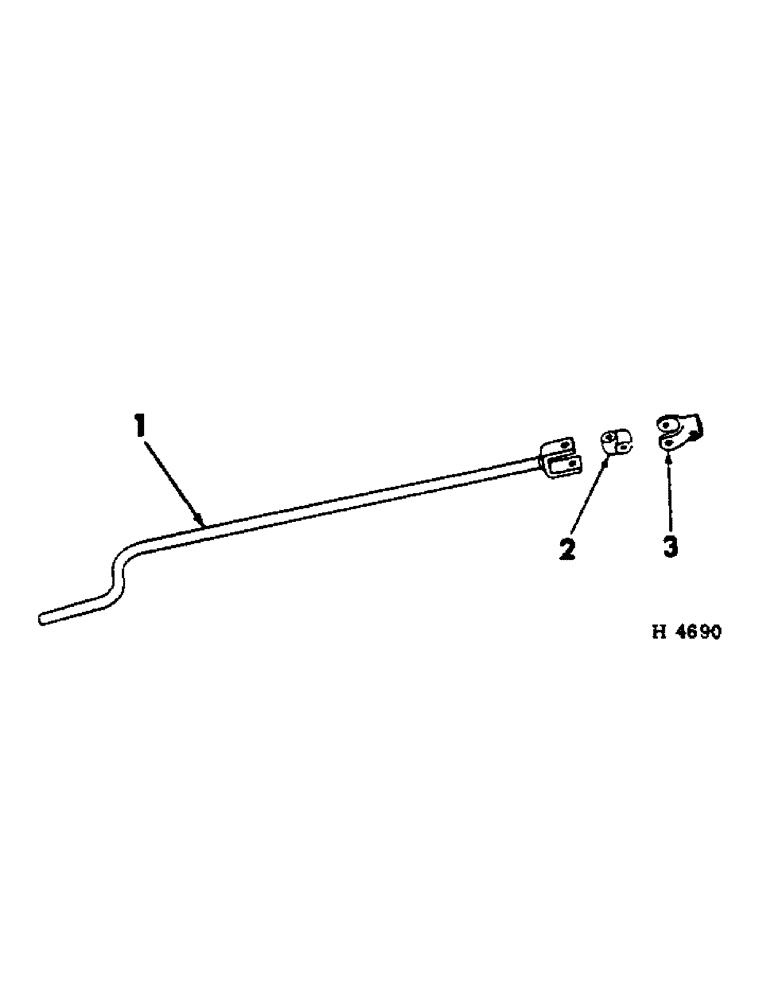

Схема запчастей Case IH 100 - (B-19) - POWER LIFT ADJUSTING CRANK, SPECIAL, 10 X 6, 12 X 6, 14 X 6 AND 16 X 6 WITH SINGLE ROCKSHAFT
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

604232R11

CRANK, adjusting screw

1шт.

577140R1

LOCK PIN,3/8" x 1 7/8", Slotted

Pin, 3/8" x 1 7/8", Slotted

1шт.

2

601418R1

KNUCKLE, universal joint

1шт.

17098R1

LOCK PIN,3/8" x 1 3/4", Slotted

PIN, 3/8" x 1 3/4", Slotted

1шт.

3

601294R1

KNUCKLE, adjusting screw

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.
